K401 Piezoelectric Power Sensor

Piezo sensor products use piezoelectric materials to convert the measured force into electrical signals;
IEPE circuit can be installed to output voltage signal

  • K401
  • HWAKAI
  • Piezoelectronic
  • 1KN ~20kN, 20kN ~

Product Description

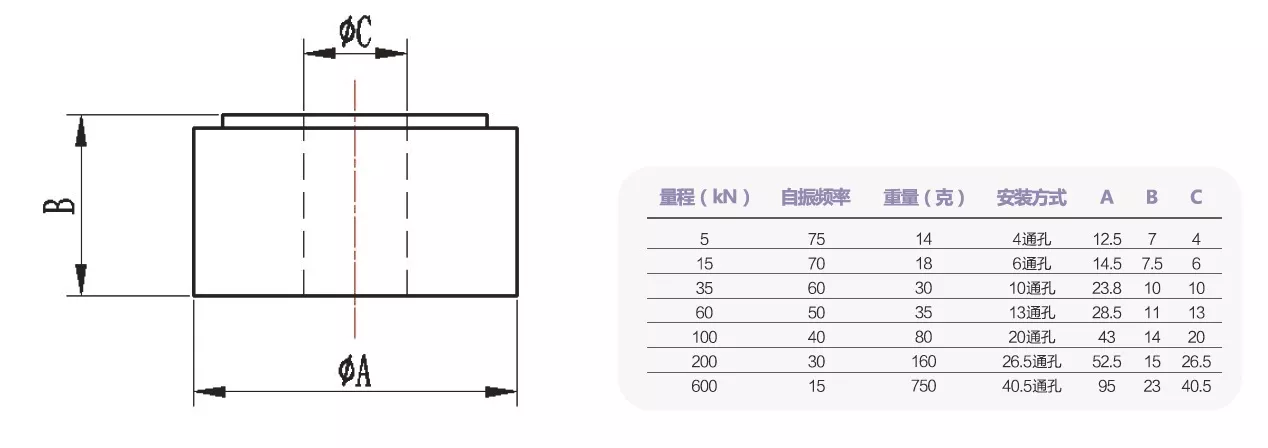

Dimension



Parameters



Specifications

Technique

Capacity

5,15,35,60,100,200,600 kN

Sensitivity

4 pC / N

2 / 0.7 pC / N (600kN)

Non-linearity (≤)

1% F.S.

Service Temperature Range

-54 ~ + 121 ℃

Method of sealing

Laser welding

Output mode

M5

Cable connect

D01

Material

Stainless steel



Features and Applications



The piezoelectric material is used to convert the measured force into an electrical signal, and the available frequency range is wide,

Wide dynamic range, sturdy structure, long service life, IEPE circuit can be added to output voltage signal.

Load direction



Wiring Code



Wiring regulations



Download

K401
