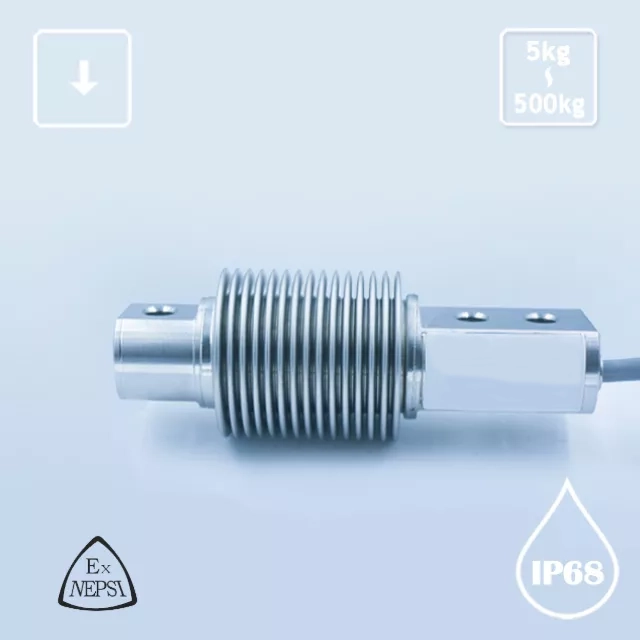

K701 Bending Beam Load Cell

Widely used in Packaging scales, hopper scales, various industrial weighing systems, etc.

Categories Bending Beam Load Cells, Weighing Load Cells

Material:

Features:

Model:K701
Brand:HWAKAI
Load Direction:Weighing
Capacity:1N~100N, 100N~1000N, 1KN ~20kN
IP Class:IP66

Product Description

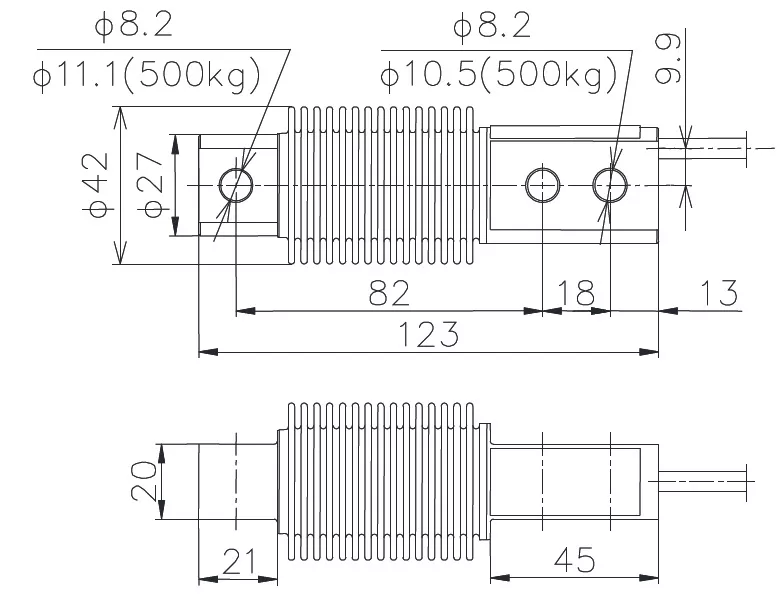

Dimension

Parameters

Specifications	Technique
Capacity	5,10,20,30,50,100,200,500 kg
Accuracy	C3
Zero Balance	2.0 ± 0.05 mV / V
Non-linearity	± 2% F.S.
Hysteresis Error	0.017% F.S.
Repetition	0.018% F.S.
Creep (30 min)	0.0166% F.S.
Temp. Effect on sensitivity (TKc)	0.008% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.0125 ％ F.S. / 10 ℃
Input resistance	390 ± 5 Ω
Output resistance	350 ± 5 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-30 ~ 70 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	300% F.S.
Cable size	φ5.4 × 1500 mm
Weight (G), approx.	0.5 kg
Material (Measuring element)	Stainless Steel
IP Class	IP68

Features and Applications

Suitable for various environments, IP 68

K701 fully welded stainless steel sensor can be used in humid environment and in water flushing environment to maintain its characteristics.

The low-section all-weld seal and high-precision design make it suitable for platform scales, packaging scales, belt scales and other places that require sealed sensors.

For locations with explosion-proof requirements, EEx ia certification is provided as an option.

Two feedback lines can feedback the sensor voltage changes. It can rely on voltage feedback to fully compensate for changes in resistance caused by changes in temperature or changes in sensor lead length.
