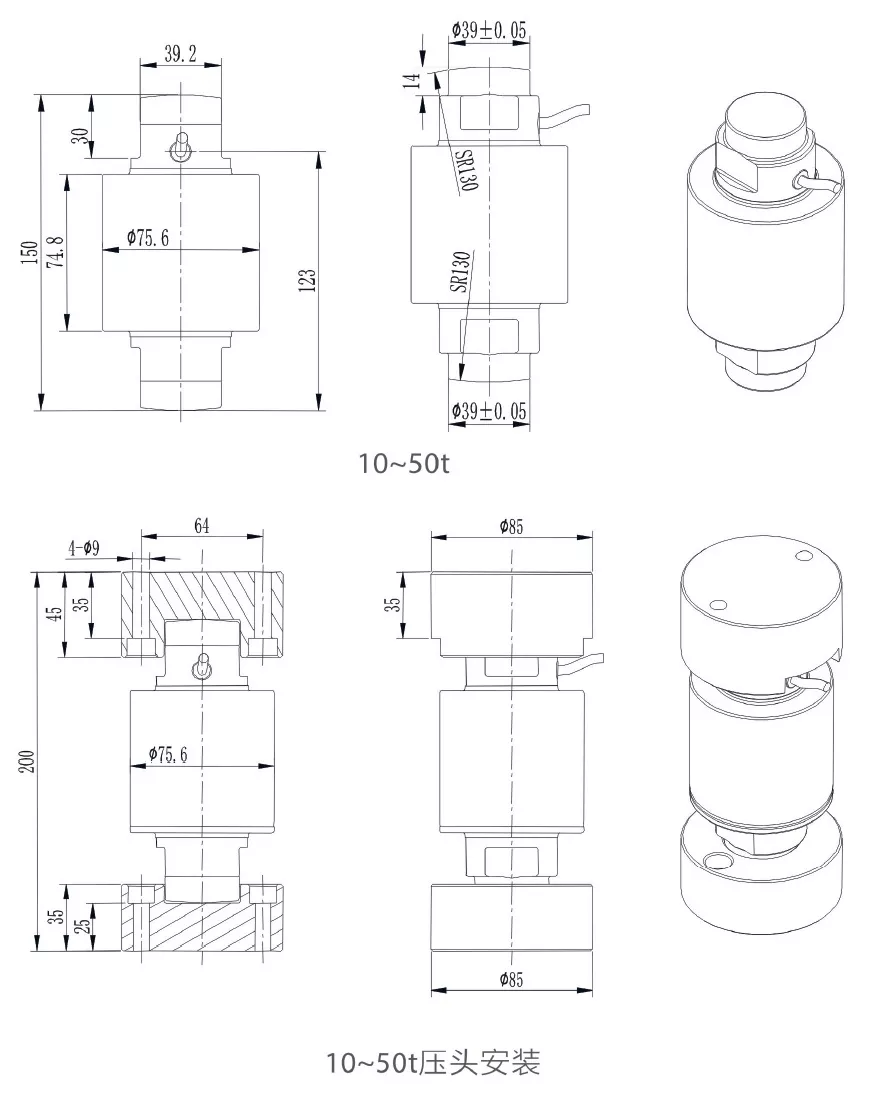

Dimensions
Parameters
Specifications
Technique
Capacity
10,20,30,50 T
Sensitivity
2 ± 0.5% mV / V
Zero Balance
± 2% F.S.
Non-linearity
0.017% F.S.
Hysteresis Error
0.017% F.S.
Repetition
0.017% F.S.
Creep (30 min)
0.017% F.S.
Temp. Effect on sensitivity (TKc)
0.01% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)
0.02% F.S. / 10 ℃
Input Resistance
780 ± 20 Ω
Output Resistance
700 ± 10 Ω
Insulating Resistance
≥5000 MΩ / 100VDC
Excitation Voltage
3 ~ 12 V
Max. Excitation Voltage
15 V
Compensation Range
-10 ~ 60 ℃
Service Temperature Range
-30 ~ 70 ℃
Limit load (E L)
150% F.S.
Breaking load (E d)
200% F.S.
Cable size
φ5.4 × 10 m
Material (Measuring element)
Stainless Steel
IP Class
IP68
Features and Applications Cylindrical load cell, stainless steel material, laser welding sealing;
Double round head rocker design, fast dynamic response;
Protection grade IP68, suitable for weighing in heavy environments such as truck scales and railway scales;
The column structure is resistant to overload, strong impact resistance, and rated load.
Load Direction
Wiring Code
Download K199
