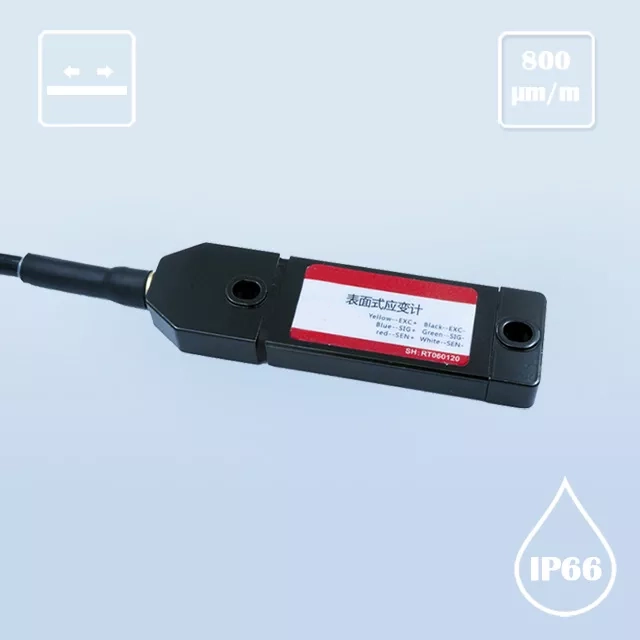

K910B Strain And Stress Sensor

Suitable for large equipment, bridges, railways, granaries, dams and other engineering fields;It is used to measure the strain and stress of the installation point. It is easy to install and only needs to be fastened with bolts.

Category Customization Force Measuring Load Cells

Material:

Other :

Model:K910B
Brand:HWAKAI
Load Direction:customization
IP Class:IP66

Product Description

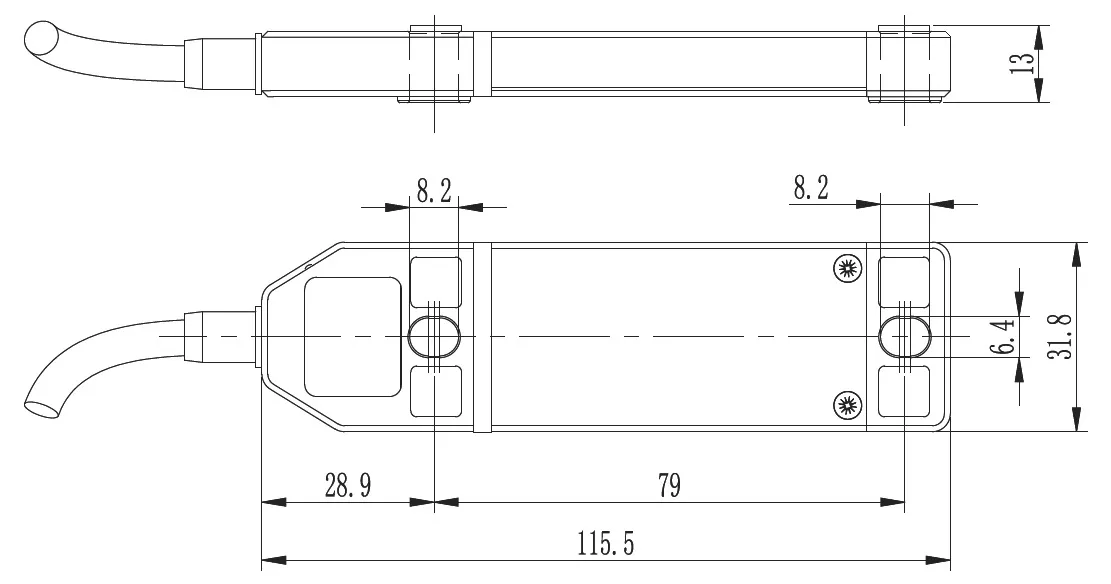

Dimension

Parameter

Specification	Technique
Capacity	800 μ m / m
Sensitivity	1.5 ± 10% mV / V
Zero Balance	± 5% F.S.
Temp. Effect on sensitivity (TKc)	0.2 ％ F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.5 ％ F.S. / 10 ℃
Input Resistance	1000 ± 20 Ω
Output Resistance	1000 ± 20 Ω
Insulating Resistance	≥5000MΩ / 100 VDC
Excitation Voltage	5 ~ 12 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 60 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	200% F.S.
Cable size	φ6 × 4000 mm
Weight (G), approx.	0.4 kg
Material (Measuring element)	Aluminum alloy
IP Class	IP66

Features and Applications

Easy to install, only need to be fastened with bolts

Reusable

Protection level: IP66

Adopt high elasticity material as strain material, choose high precision resistance strain gauge as sensitive component, high precision and good long-term stability

Large equipment, bridges, railways, granaries, dams and other engineering fields, used to measure the strain and stress of the installation point
