K153D Compression Load cell

Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics, etc .;
High dynamic response frequency.

Categories Compression Load Cells, Cylindrical Type Compression

Material:

Size :

Model:K153D
Brand:HWAKAI
Load Direction:Compression
Capacity:1KN ~20kN, 20kN ~
IP Class:IP66

Product Description

● Features and Applications

Low height and small deformation;

Stainless steel material, high temperature can be customized;

Protection grade: IP66 can be customized;

Automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics;

High precision, good long-term stability, good reliability, fatigue resistance, high frequency of use, good creep performance, small temperature drift, high dynamic response frequency;

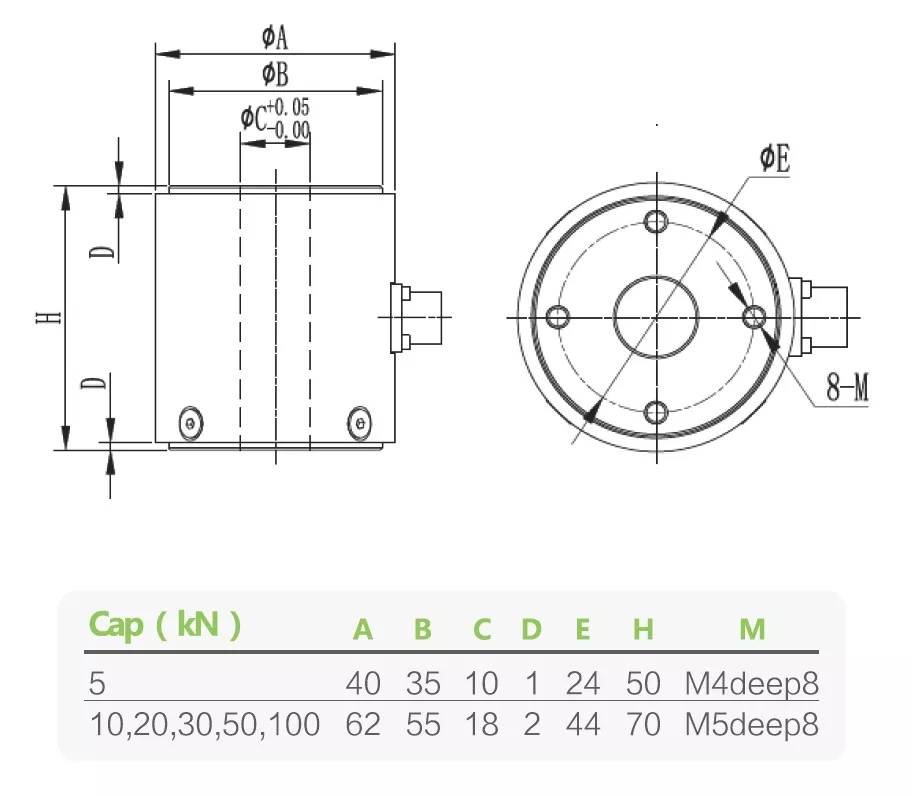

● Dimension

● Parameter

Capacity	5,10,20,30,50,100 kN
Sensitivity	1.0 ± 20 ％ mV / V
Zero Balance	± 0.05 mV / V
Non-linearity	0.2% F.S.
Hysteresis Error	0.2% F.S.
Repetition	0.1% F.S.
Creep (30 min)	0.1% F.S.
Temp. effect on sensitivity (TKc)	0.05% F.S./10℃
Temp. effect on zero balance (TKo)	0.05% F.S./10℃
Input Resistance	780± 10Ω
OutputResistance	700 ± 10Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. excitation Voltage	20 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-20 ~ 80 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	200% F.S.

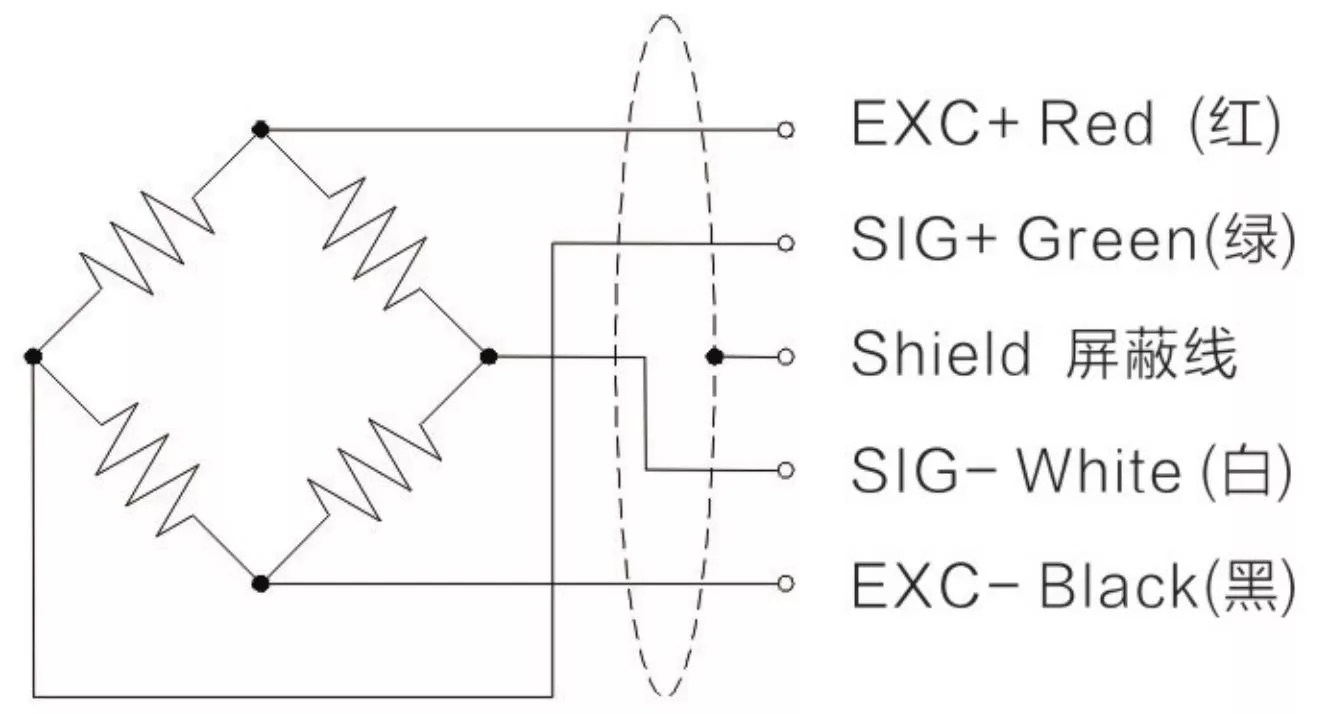

Cable Size	φ5 × 4000 mm
Material (Measuring element)	Stainless steel
IP Class	IP66 (customizable)
