K248 Mini Spoke And Round Load Cell

Can be loaded biaxially;Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, etc .

Categories Compression Load Cells, Intrinsically Safe Load cell

Material:

Size :

Model:K248
Brand:HWAKAI
Load Direction:Compression
Capacity:1KN ~20kN, 20kN ~
IP Class:IP66

Product Description

● Features and Applications

Spoke sensor;

Alloy steel / stainless steel material;

Tension and compression

Automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics;High precision, good long-term stability, good reliability, fatigue resistance, high frequency of use, good creep performance, small temperature drift, high dynamic response frequency;

Other ranges can be customized;

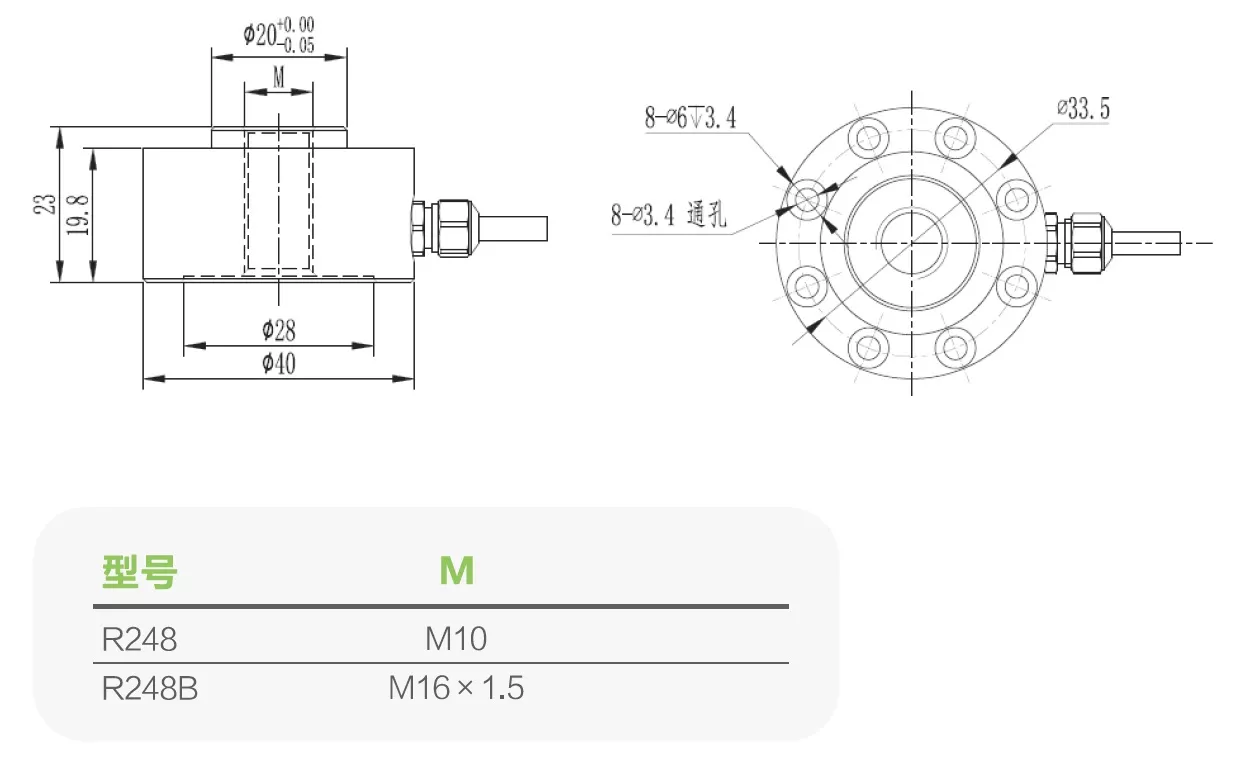

● Dimension

● Parameter

Capacity	100,200,1000,2000 kg (1kN ~ 20kN)
Sensitivity	1.5 ± 20 ％ mV / V
Zero Balance	± 3% F.S.
Non-linearity	0.25% F.S.
Hysteresis Error	0.25% F.S.
Repetition	0.25% F.S.
Creep (30 min)	0.25% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S./10℃
Temp. Effect on zero balance (TKo)	0.05% F.S./10℃
Input Resistance	780± 20 Ω
Output Resistance	700 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-10 ~ 80 ℃
Limit load (EL)	150% F.S.
Breaking load (Ed)	200% F.S.
Cable Size	φ3 × 4000 mm
Material (Measuring element)	Stainless steel
IP Class	IP66
