K120 Compression Load Cell

Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics, etc .;
High dynamic response frequency, can be used outdoors or in harsh environments.

Categories Compression Load Cells, Intrinsically Safe Load cell

Material:

Size :

Model:K120
Brand:HWAKAI
Load Direction:Compression
Capacity:20kN ~
IP Class:IP68

Product Description

● Features and Applications

Low height, small deformation and small size;

Stainless steel material, high precision;

Protection grade: IP68 can be used outdoors or in harsh environments;

High precision, good long-term stability, good reliability, fatigue resistance, high frequency of use, good creep performance, small temperature drift, high dynamic response frequency;

Automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics;

It is also often used for weighing storage, feed tanks and reactors, with low height and good stability

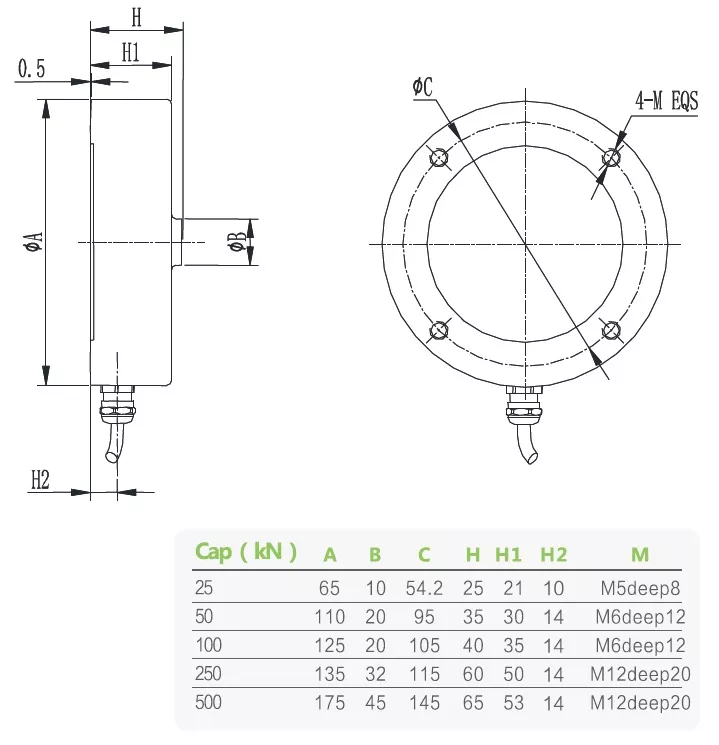

● Dimension

● Parameter

Capacity	25,50,100,250,500 kN
Sensitivity	2.0 ± 1 ％ mV / V
Zero Balance	± 0.05 mV / V
Non-linearity	0.05% F.S.
Hysteresis Error	0.03% F.S.
Repetition	0.02% F.S.
Creep (30 min)	0.02% F.S.
Temp. Effect on sensitivity (TKc)	0.03 ％ F.S./10℃
Temp. Effect on zero balance (TKo)	0.03 ％ F.S./10℃
Input Resistance	385/780 ± 20Ω
Output Resistance	350/700 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-20 ~ 80 ℃
Limit load (EL)	150% F.S.
Breaking load (Ed)	200% F.S.
Cable Size	φ5 × 5000 mm (25 ~ 100 kN) φ5 × 10000 mm (250 ~ 500 kN)
Material (Measuring element)	Stainless steel
IP Class	IP68
