K197 Force Measuring Device Compression Load Cell

It is mainly used in force measuring equipment and can be used as a standard source for measurement;
Strong stability, maximum capacity up to 5000T, suitable for various environments.

Categories Compression Load Cells, Intrinsically Safe Load cell

Material:

Size :

Model:K197
Brand:HWAKAI
Load Direction:Compression
Capacity:20kN ~
IP Class:IP67

Product Description

● Features and Applications

Strong stability;

Suitable for various environments and protection grade IP67;

The maximum capacity is up to 5000T;

Mainly used in force measuring equipment;

Can be used as a standard source for measurement;

High precision, good reliability, fatigue resistance, high frequency of use, good creep performance, small temperature drift, high dynamic response frequency;

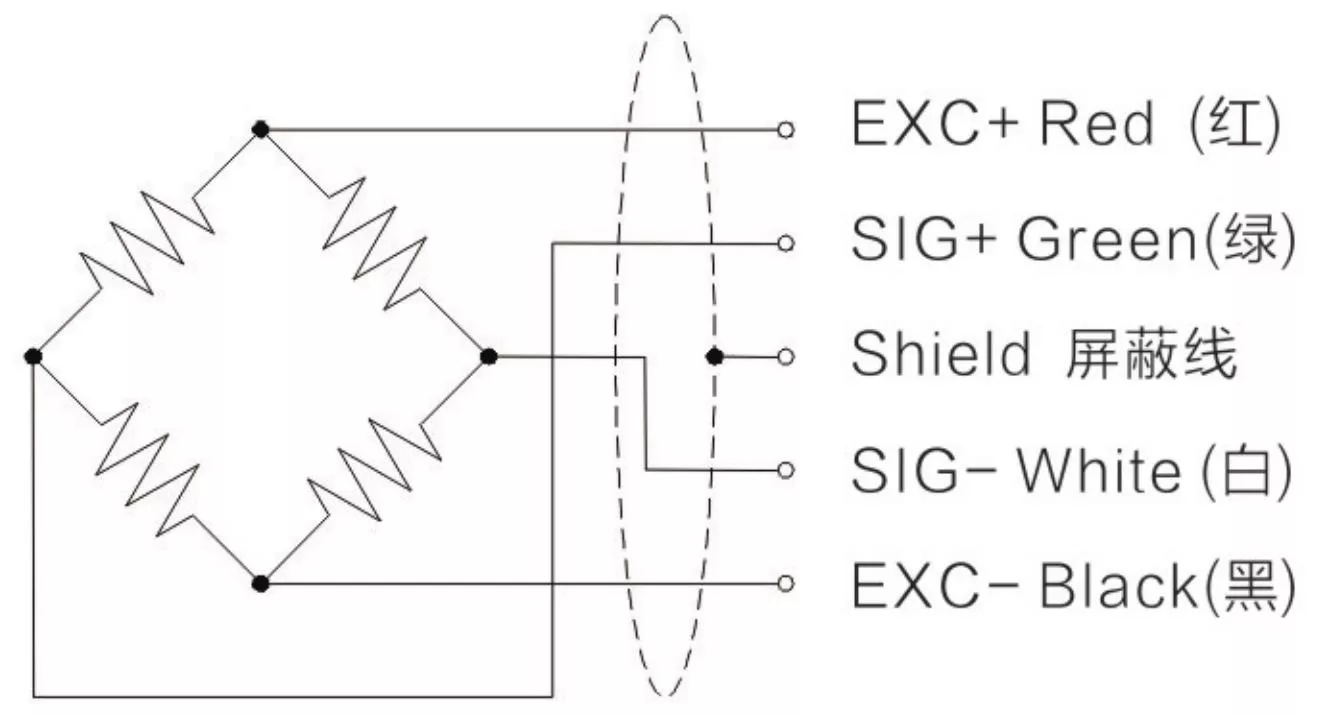

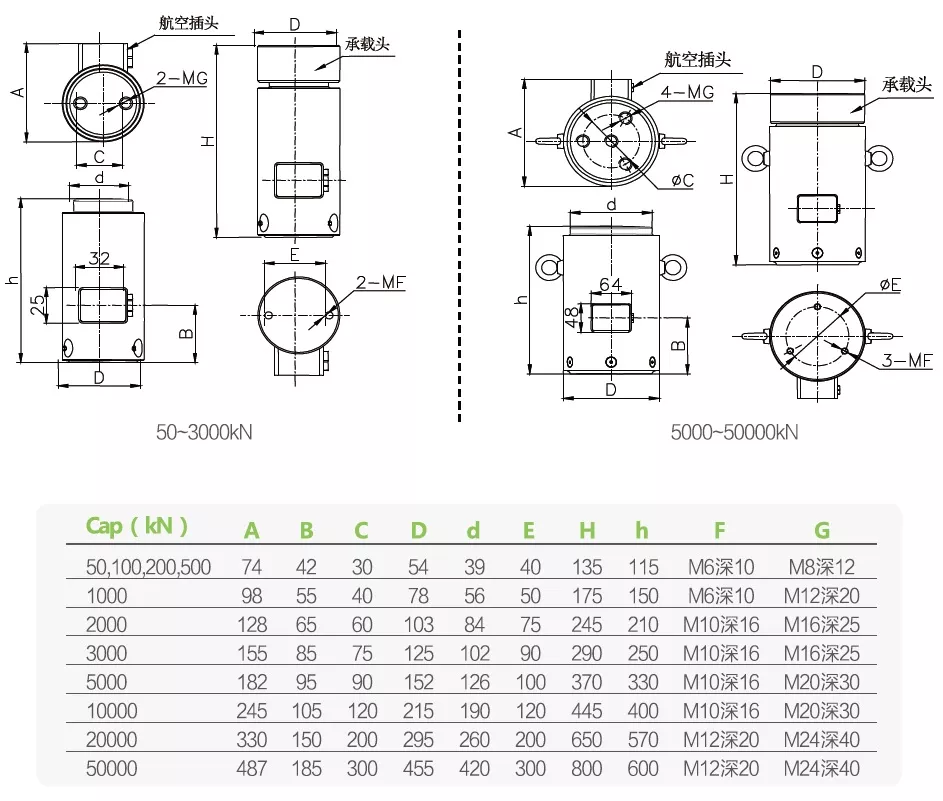

● Dimension

● Parameter

Capacity	50,100,200,500,1000,2000,3000, 5000,10000,20000,50000 kN
Sensitivity	-2.0 mV / V
Zero Balance	±1% F.S.
Non-linearity	0.02% F.S, 0.05% F.S. 0.1% F.S., 0.3% F.S.
Hysteresis Error	0.02% F.S, 0.05% F.S. 0.1% F.S., 0.3% F.S.
Repetition	0.02% F.S, 0.05% F.S. 0.1% F.S., 0.3% F.S.
Creep (30 min)	0.02% F.S, 0.05% F.S. 0.1% F.S., 0.3% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S./10℃
Temp. Effect on zero balance (TKo)	0.05% F.S./10℃
Input Resistance	760 ± 20 Ω
Output Resistance	700 ± 10 Ω
Insulating Resistance	≥5000MΩ / 100VDC
Excitation Voltage	5 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-30 ~ 70 ℃
Limit load (EL)	150% F.S.
Breaking load (Ed)	300% F.S.
Cable Size	φ5.4 × 6000 mm
Material (Measuring element)	Stainless steel / alloy steel
IP Class	IP67
