Dimension
Parameters
|
Specifications
|
Technique
|
|
Capacity
|
100g, 200g, 500g, 1kg, 2kg
|
|
Sensitivity
|
1.0 ± 10% mV / V (300g, 500g)
2.0 ± 10% mV / V (1 ~ 5kg)
|
|
Zero Balance
|
± 2% F.S.
|
|
Non-linearity
|
0.05% F.S.
|
|
Hysteresis
|
0.05% F.S.
|
|
Repetition
|
0.05% F.S.
|
|
Creep (30 min)
|
0.03% F.S.
|
|
Temp. Effect on sensitivity (TKc)
|
0.03 ％ F.S. / 10 ℃
|
|
Temp. Effect on zero balance (TKo)
|
0.03 ％ F.S. / 10 ℃
|
|
Input Resistance
|
380 ± 40 Ω
|
|
Output Resistance
|
380 ± 40 Ω
|
|
Insulating Resistance
|
≥5000 MΩ / 100VDC
|
|
Excitation Voltage
|
5 ~ 15 V
|
|
Max. Excitation Voltage
|
20 V
|
|
Compensation Range
|
-10 ~ 40 ℃
|
|
Service Temperature Range
|
-25 ~ 70 ℃
|
|
Limit load (E L)
|
150% F.S.
|
|
Breaking load (E d)
|
300% F.S.
|
|
Cable size
|
φ4 × 400 mm
|
|
Weight (G), approx.
|
0.1 kg
|
|
Material (Measuring element)
|
Aluminum Alloy
|
|
IP Class
|
IP65
|

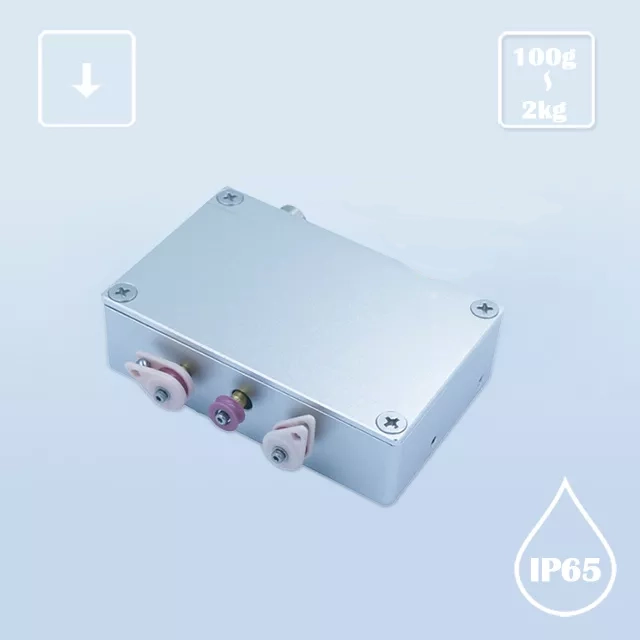

Features and applications
Aluminum alloy material
High precision and strong anti-eccentricity
Easy to install, protection grade: IP 65
Mainly used for the detection and control of wire tension
Load Direction
Wiring Code
Download
K253
