K274B Tension Load Cell

Widely used in silicon wafer cutting machine, sapphire cutting, crystal cutting, metal wire, optical fiber, carbon fiber and other wire tension detection and is suitable for various environments.

Categories Line Tension, Tension / Clip Load Cells

Material:

Size :

Model:K274B
Brand:HWAKAI
Load Direction:Tension
Capacity:1N~100N, 100N~1000N
IP Class:IP67

Product Description

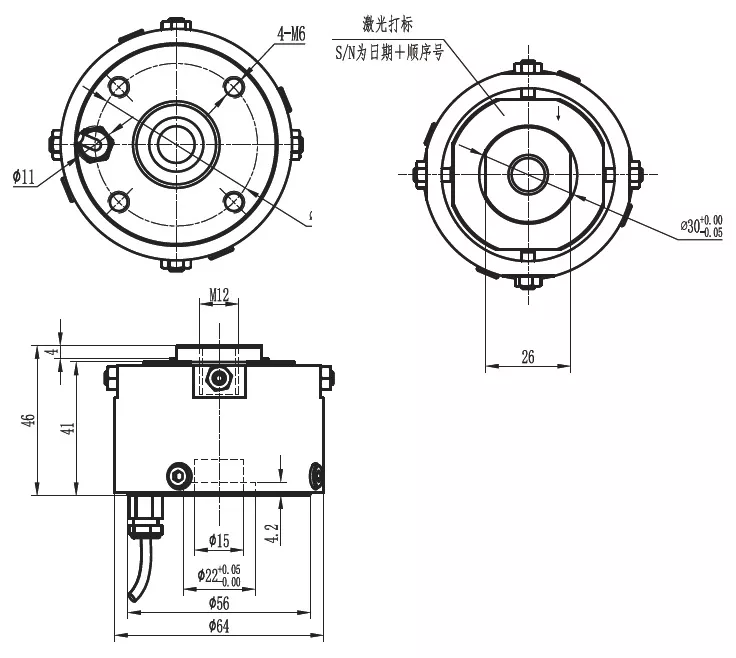

Dimension

Parameters

Specification	Technique
Capacity	5,10,20 kg
Sensitivity	2.0 mV / V
Zero Balance	± 0.05 mV / V
Non-linearity	0.03% F.S.
Hysteresis Error	0.03% F.S.
Repetition	0.03% F.S.
Creep (30 min)	0.02% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.03 ％ F.S. / 10 ℃
Input Resistance	385 ± 20 Ω
Output Resistance	350 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-20 ~ 70 ℃
Service Temperature Range	-30 ~ 85 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	200% F.S.
Cable size	φ4 × 4000 mm
IP Class	IP67

Features and Applications

Tension measuring sensor, stainless steel, strong stability

Compact structure for easy installation

Suitable for various environments, protection level: IP 67

Widely used in: online cutting of various wire materials such as silicon wafer cutting machine, sapphire cutting, crystal cutting, metal wire, optical fiber, carbon fiber, etc.
