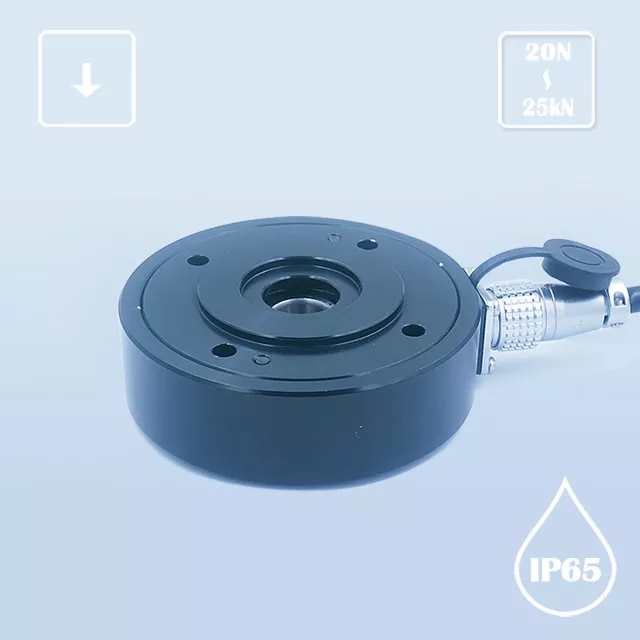

K201 TENSION LOAD CELL / DOUGHNUT-SHAPED / COMPACT / HIGH-PRECISION

Suitable for wire rope tension measurement.

Categories Surface Tension, Tension / Clip Load Cells

Size :

Other :

Model:K201
Brand:HWAKAI
Load Direction:Tension
Capacity:1N~100N, 100N~1000N, 1KN ~20kN, 20kN ~
IP Class:IP65

Product Description

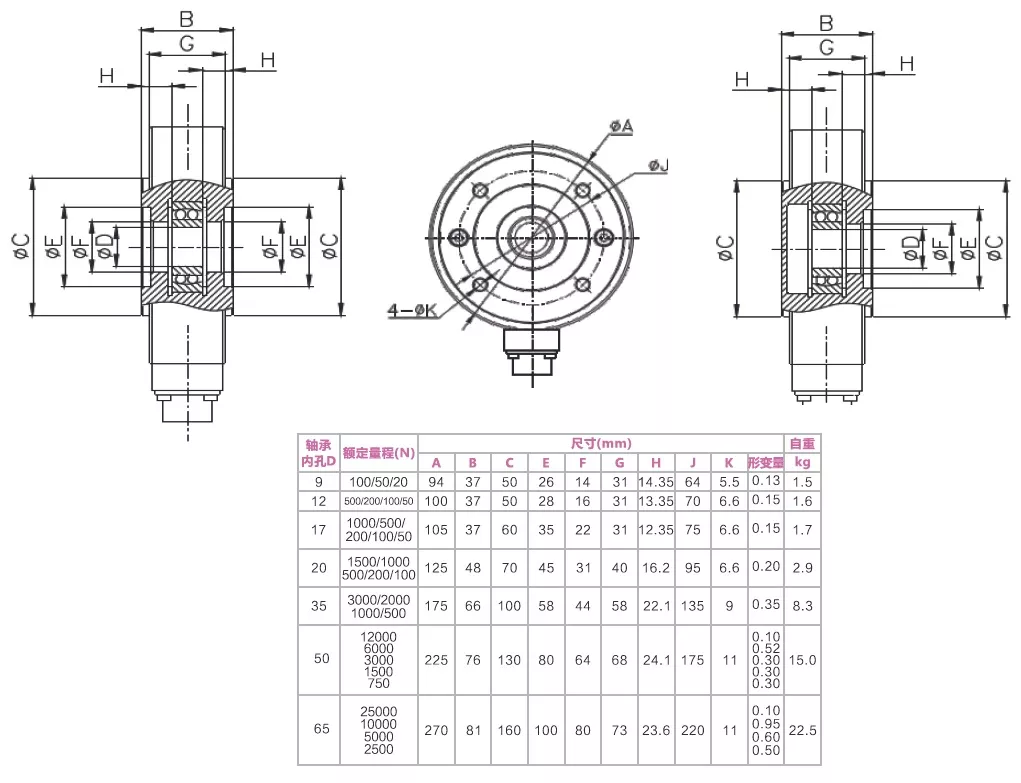

Dimension

Parameters

Specifications	Technique
Capacity	20N ~ 25 kN
Sensitivity	2.0 ± 0.2% mV / V
Zero Balance	± 2% F.S.
Non-linearity	0.25% F.S.
Hysteresis Error	0.25% F.S.
Repetition	0.1% F.S.
Creep (30 min)	0.1% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.05% F.S. / 10 ℃
Input Resistance	410 ± 10 Ω
Output Resistance	350 ± 5 Ω
Insulating Resistance	≥5000MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-20 ~ 80 ℃
Service Temperature Range	-20 ~ 80 ℃
Limit load (E L)	120% F.S.
Breaking load (E d)	200% F.S.
Cable size	φ5 × 3000 mm
IP Class	IP65

Features and Applications

Compact, versatile and reliable, these load cells are used for through shaft assembly application.

K201 shaft through load cells are available with loads range from 20N to 25000N and in special versions for use in high humidity environments or vacuums.
