● Features and Applications Low height, small deformation and easy installation;
Stainless steel
Protection grade IP66, can be customized;
Automotive press assembly, automated assembly, new energy product assembly, medical testing, robotics, dynamic response frequency is high.

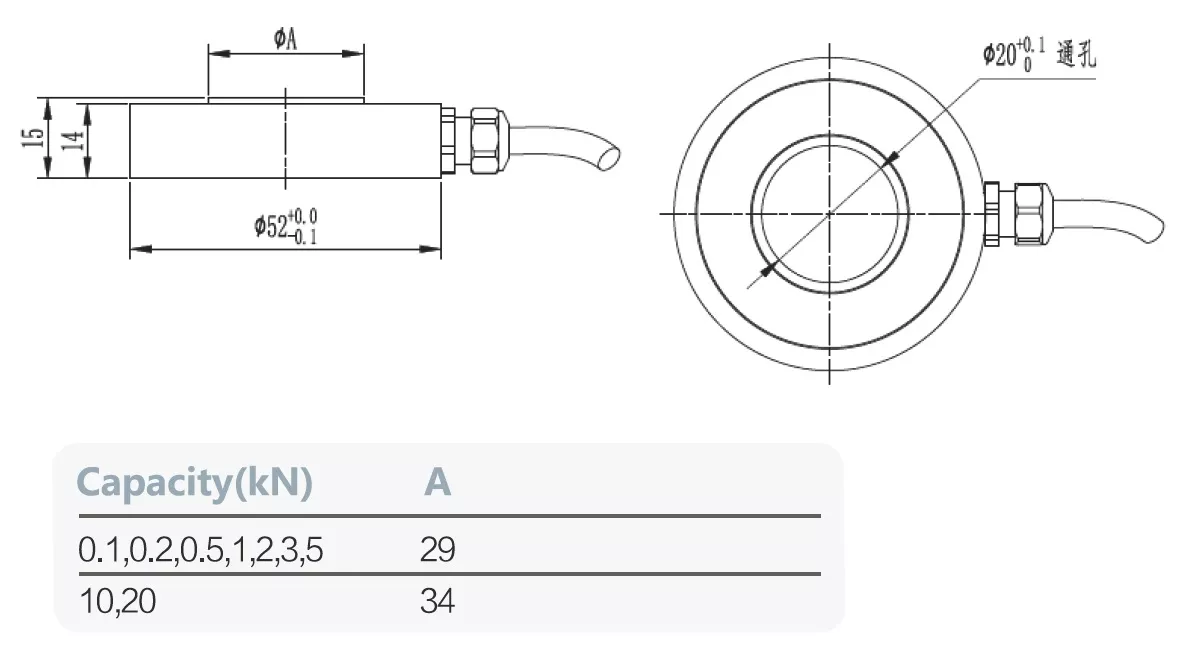

● Dimension
● Parameter
Capacity
0.1,0.2,0.5,1,2,3,
5,10,20 kN
Sensitivity
1.5 ± 20 ％ mV / V
Zero Balance
± 3% mV / V
Non-linearity
0.2% F.S.
Hysteresis Error
0.2% F.S.
Repetition
0.1% F.S.
Creep (30 min)
0.1% F.S.
Temp. Effect on sensitivity (TKc)
0.05 ％ F.S. / 10 ℃
Temp. Effect on zero balance (TKo)
0.05 ％ F.S. / 10 ℃
Input Resistance
385± 20 Ω
Output Resistance
350 ± 10 Ω
Insulating Resistance
≥5000 MΩ / 100VDC
Excitation Voltage
5 V
Max. Excitation Voltage
15 V
Compensation Range
-10 ~ 60 ℃
Service Temperature Range
-20 ~ 80 ℃
Limit load (E L)
150% F.S.
Breaking load (E d)
200% F.S.
Cable Size
φ4 × 4000 mm
Material (Measuring element)
stainless steel
Weight (G), approx.
0.1kg
IP Class
IP66
● Load direction

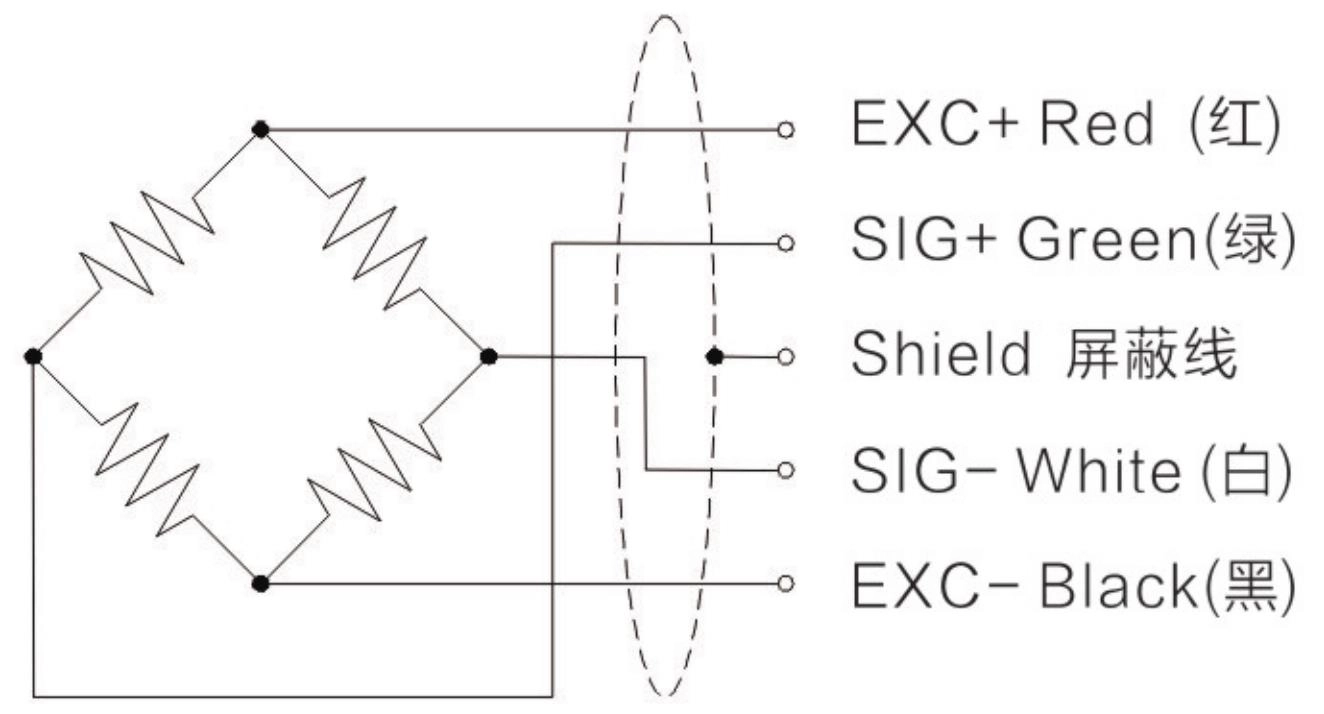

● Wiring Code
● Download K029
