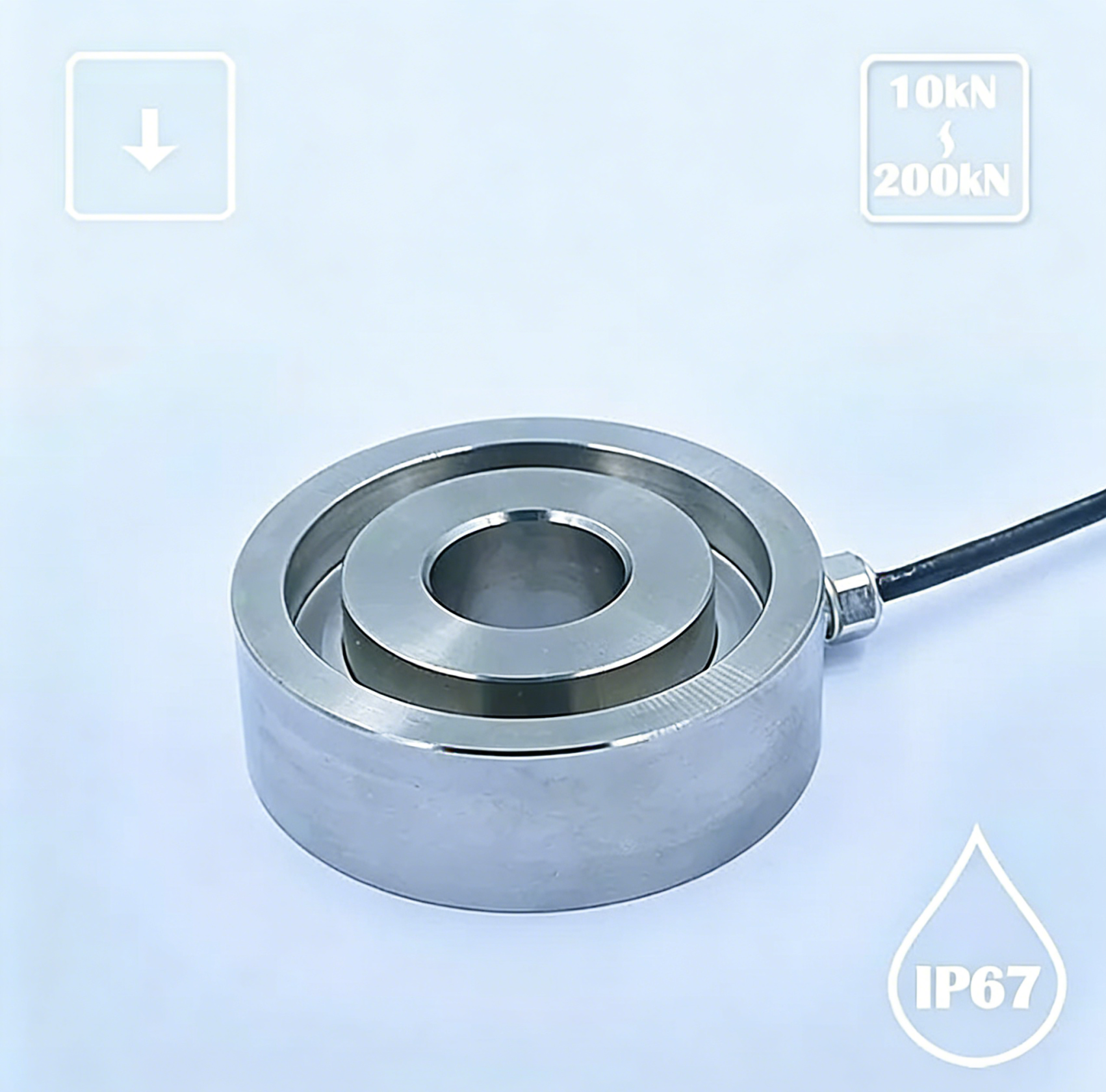

● Features and Applications Small size;
Stainless steel / alloy steel materials;
Thread force monitoring;
Automotive press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics,
Mold assembly and other industrial test and measurement systems;

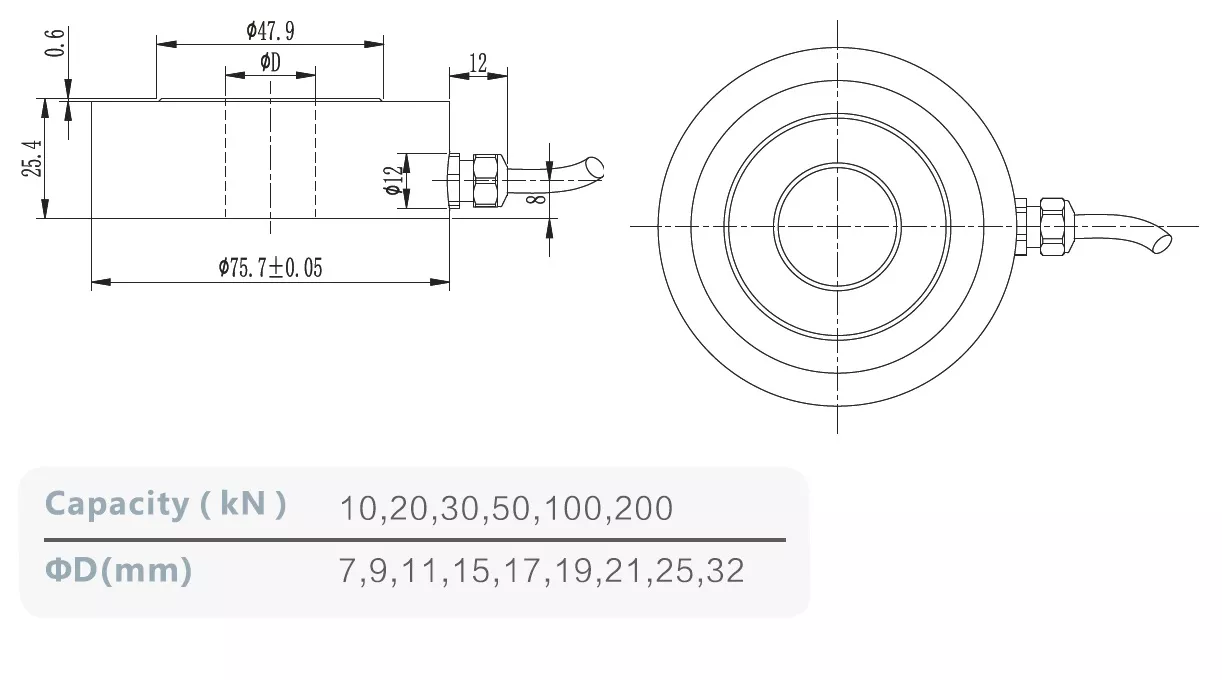

● Dimension
● Parameter
Capacity
10,20,30,50,100,200 kN
Sensitivity
1.5 ± 10 ％ mV / V
Zero Balance
± 0.03mV / V
Non-linearity
0.1% F.S.
Hysteresis Error
0.1% F.S.
Repetition
0.05% F.S.
Creep (30 min)
0.05% F.S.
Temp. Effect on sensitivity (TKc)
0.05% F.S./10℃
Temp. Effect on zero balance (TKo)
0.05% F.S./10℃
Input Resistance
780± 20 Ω
Output Resistance
700 ± 10 Ω
Insulating Resistance
≥5000MΩ / 100VDC
Excitation Voltage
5 ~ 15 V
Max. Excitation Voltage
20 V
Compensation Range
-10 ~ 60 ℃
Service Temperature Range
-20 ~ 80 ℃
Limit load (E L)
150% F.S.
Breaking load (E d)
200% F.S.
Cable Size
φ4 × 4000 mm
Material (Measuring element)
stainless steel
Weight (G), approx.
0.1 kg
IP Class
IP67
● Load Direction

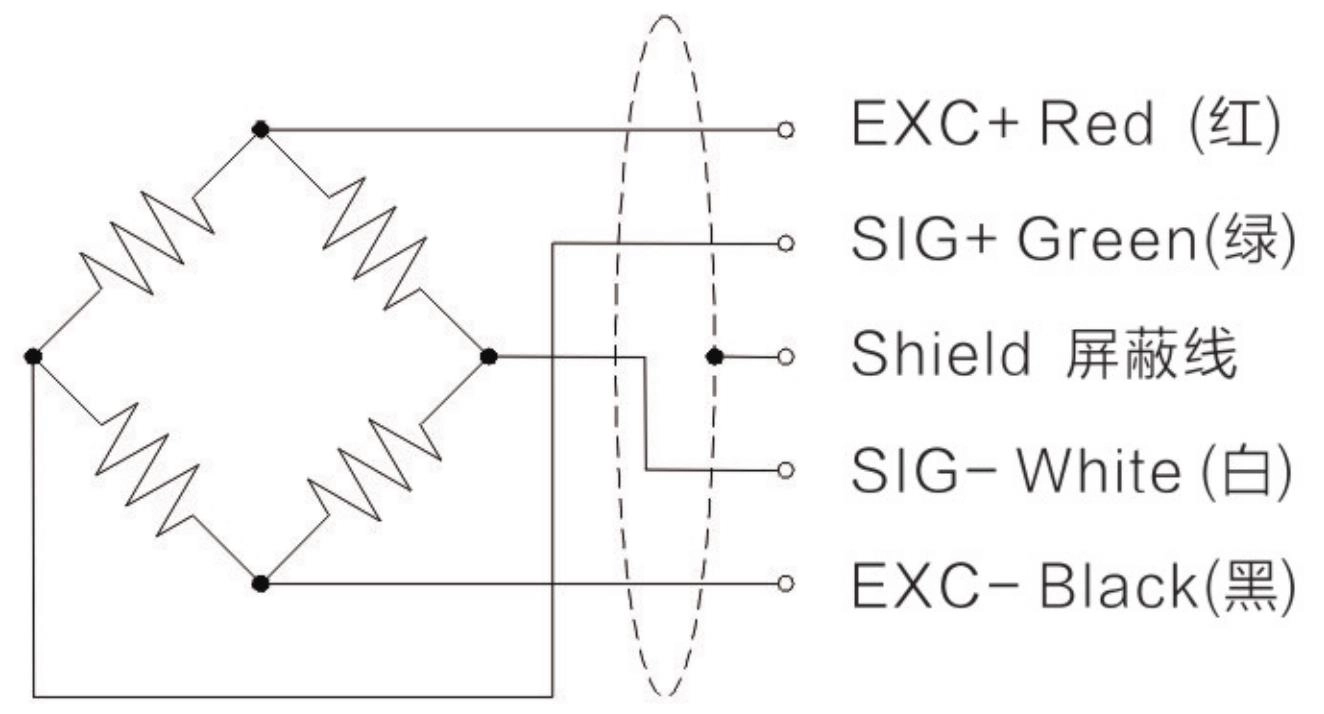

● Wiring Code
● Download K119
