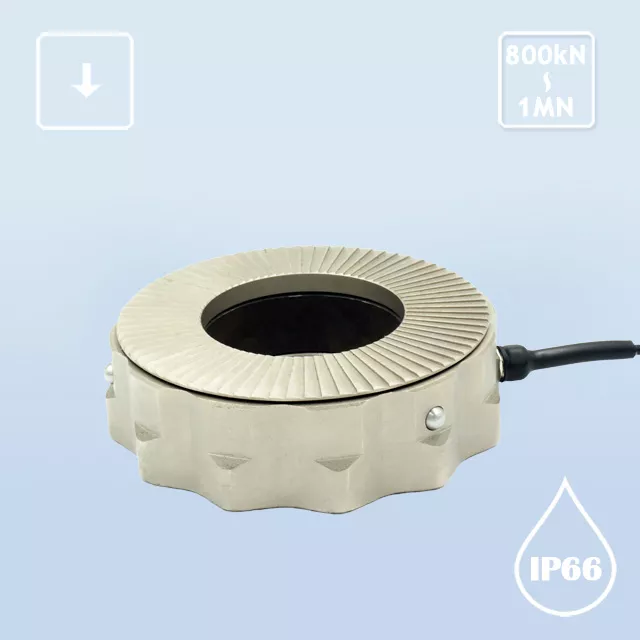

K112C Thread Lock Device Sensor

Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly,
medical testing, robotics, mold assembly, and other industrial test, measurement, and control systems have high dynamic response frequencies.

Category Bolt Preload Force Sensors

Material:

Size :

Model:K112C
Brand:HWAKAI
Load Direction:Bolt Preload Force
Capacity:20kN ~
IP Class:IP66

Product Description

● Features and Applications

Low height and small deformation;

stainless steel material;

Tension and compression

Automotive press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing,

Robotics, mold assembly and other industrial test, measurement and control systems;

High dynamic response frequency;

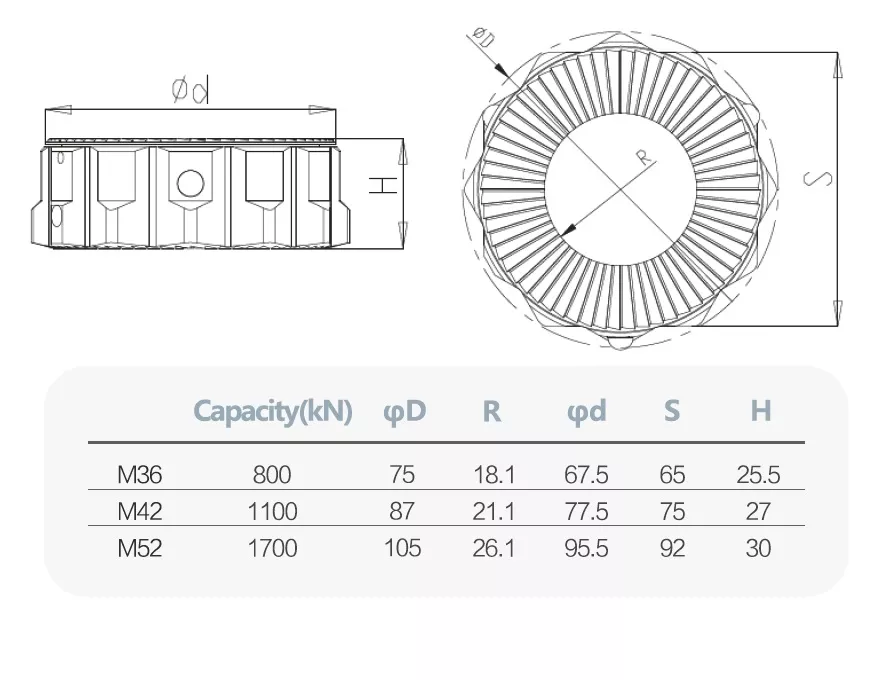

● Dimension

● Parameter

Capacity	800,1100,1700 kN
Sensitivity	2.0 ± 20 ％ mV / V
Zero Balance	± 5%mV / V
Non-linearity	1% F.S.
Hysteresis Error	0.5% F.S.
Repetition	0.2% F.S.
Creep (30 min)	0.2% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S./10℃
Temp. Effect on zero balance (TKo)	0.05% F.S./10℃
Input Resistance	350± 20 Ω
Output Resistance	350 ± 10 Ω
Insulating Resistance	≥5000MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 90 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	200% F.S.
Cable Size	φ3 × 4000 mm
Material (Measuring element)	stainless steel
Weight (G), approx.	0.3 kg
IP Class	IP 66
