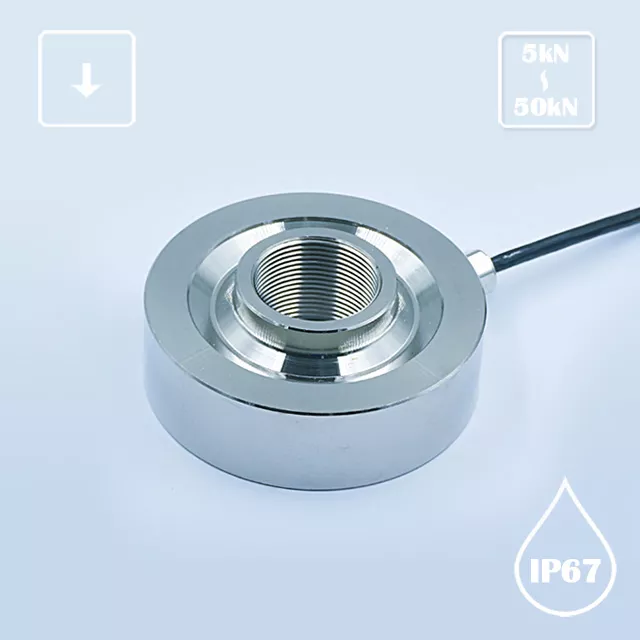

● Features and Applications Low height, small deformation and easy installation;
Stainless steel
Protection grade IP66, can be customized;
Automotive press assembly, automated assembly, new energy product assembly, medical testing, robotics, dynamic response frequency is high.

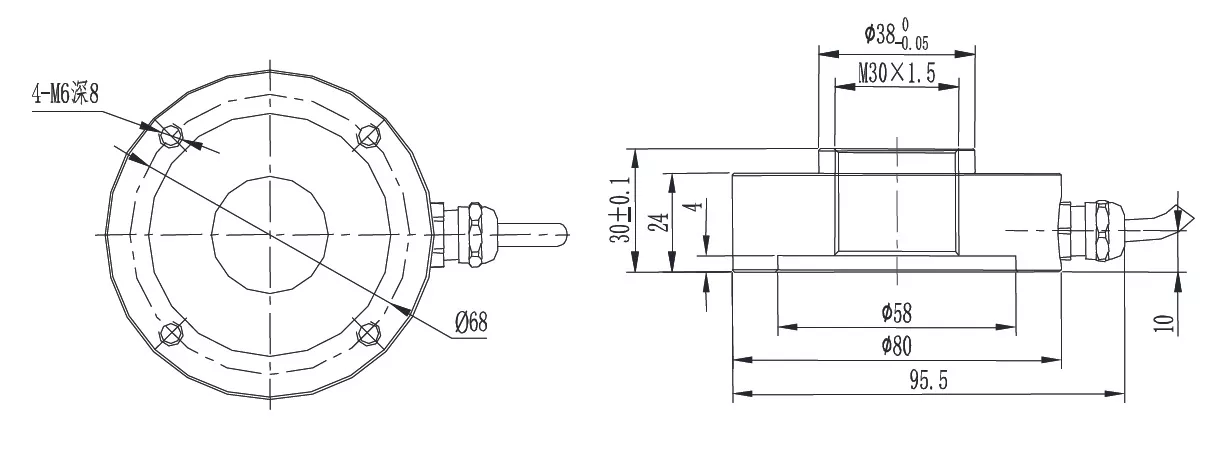

● Dimension
● Parameter
Capacity
5,10,20,30,50 kN
Sensitivity
1.5 ± 10 ％ mV / V
Zero Balance
± 0.03 mV / V
Non-linearity
0.2% F.S.
Hysteresis Error
0.2% F.S.
Repetition
0.1% F.S.
Creep (30 min)
0.1% F.S.
Temp. Effect on sensitivity (TKc)
0.05% F.S./10℃
Temp. Effect on zero balance (TKo)
0.05% F.S./10℃
Input Resistance
780± 20 Ω
Output Resistance
700 ± 10Ω
Insulating Resistance
≥5000 MΩ / 100VDC
Excitation Voltage
5 ~ 15 V
Max. Excitation Voltage
20 V
Compensation Range
-10 ~ 60 ℃
Service Temperature Range
-20 ~ 80 ℃
Limit load (E L)
150% F.S.
Breaking load (E d)
200% F.S.
Cable Size
φ5 × 4000 mm
Material (Measuring element)
stainless steel (stainless steel）
Weight (G), approx.
0.1 kg
IP Class
IP67
● Load direction

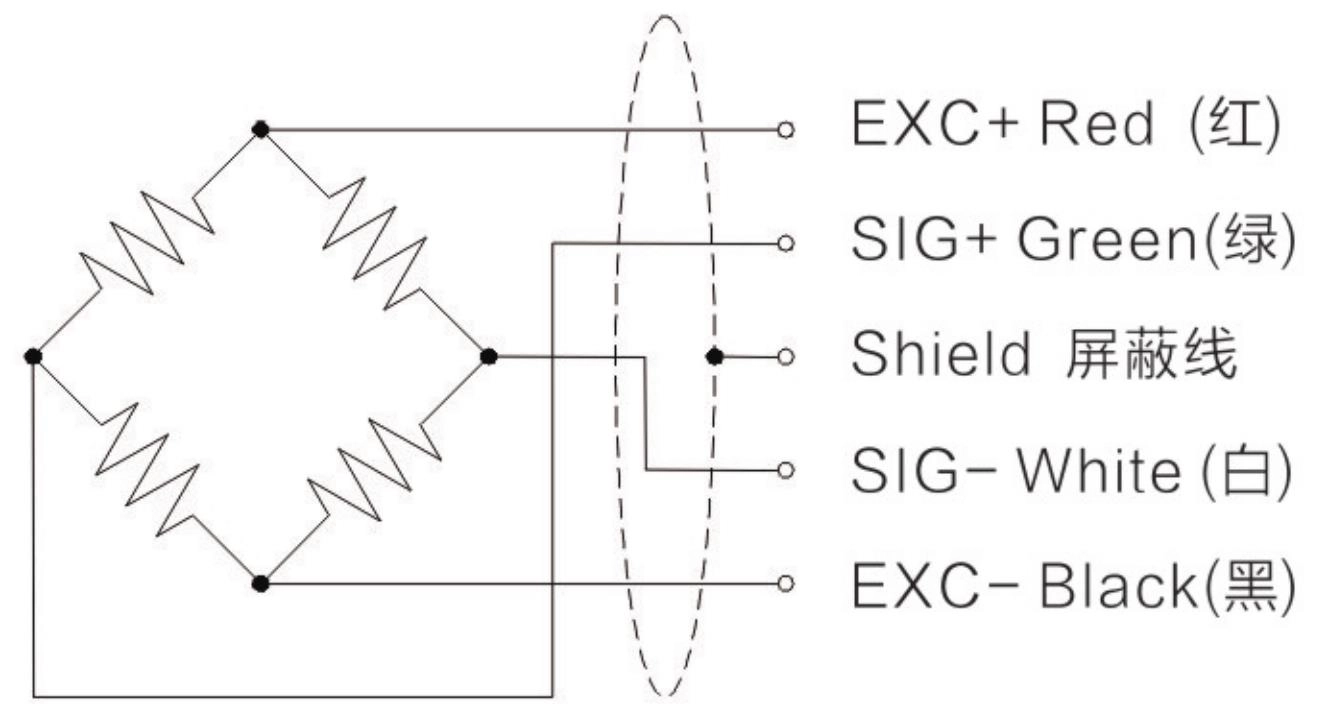

● Wiring Code
