● Features and Applications Good stability, strong bending moment, long frequency life, static torque sensor;
Compact structure for easy installation;
Protection grade IP65;
Used for torque measurement of static and discontinuous rotation, professional screwdriver, screw tightening, etc.

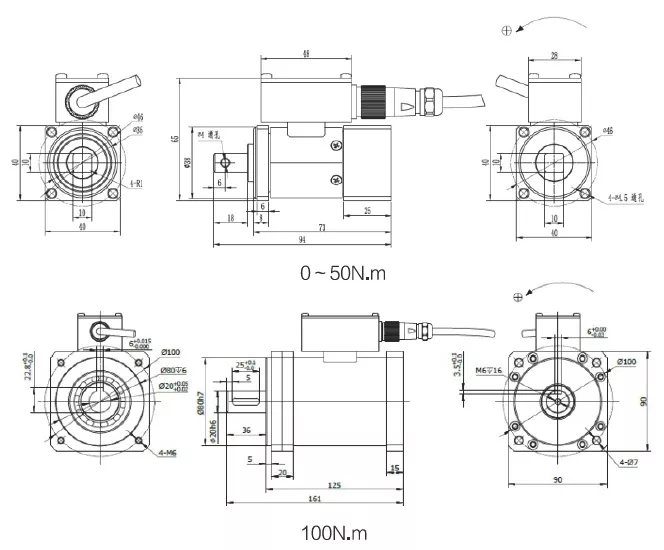

● Dimension
● Parameter
Capacity
5,10,20,50,100 N.m
Rated output
-10V ~ + 10V
Zero Balance
± 0.05 mV / V
Non-linearity
0.3% F.S.
Hysteresis Error
0.3% F.S.
Repetition
0.3% F.S.
Creep (30 min)
0.3% F.S.
Temp. Effect on sensitivity (TKc)
0.05 ％ F.S. / 10 ℃
Temp. Effect on zero balance (TKo)
0.05 ％ F.S. / 10 ℃
Insulation Resistance
≥5000MΩ / 100VDC
Excitation Voltage
24 V
Output Resistance
-10 ~ 60 ℃
Service Temperature Range
-20 ~ 80 ℃
Limit load (E L)
150% F.S.
Breaking load (E d)
200% F.S.
Cable Size
φ5 × 4000 mm
Material (Measuring element)
Alloy steel
Load direction
Counterclockwise is positive
IP class
IP 65
● Load Direction

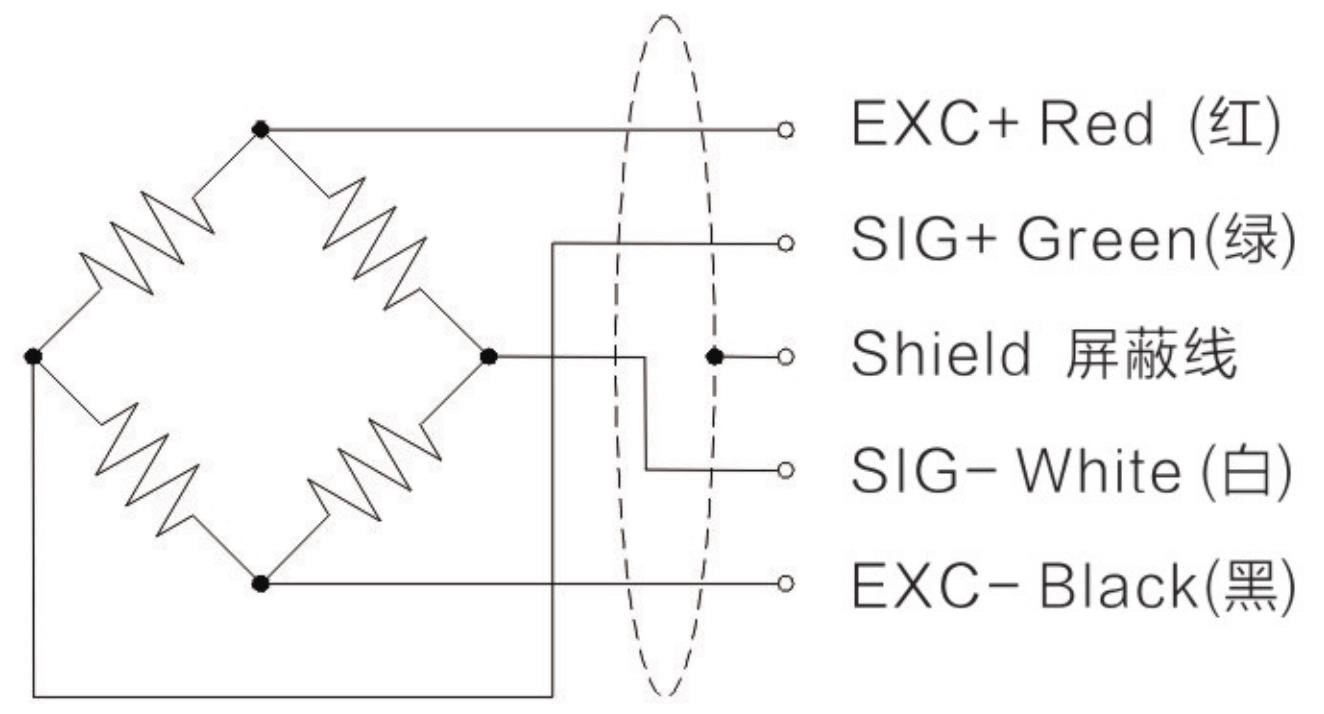

● Wiring Code
● Download K473
