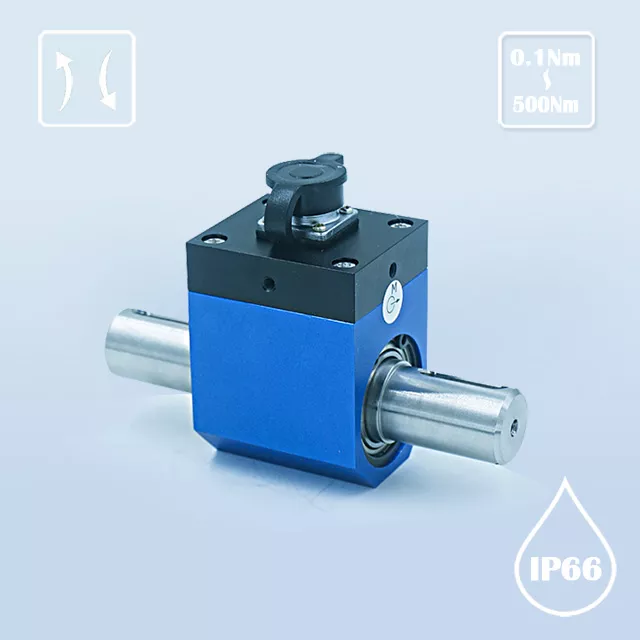

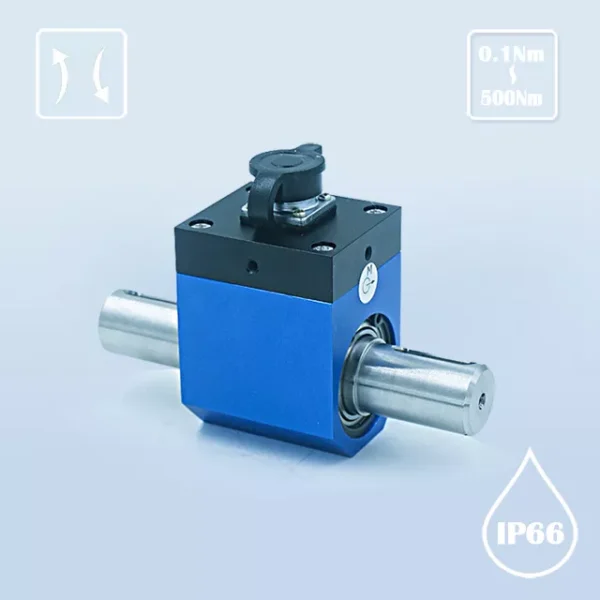

K908A Dymatic Torque Transducer

Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;

Categories Dynamic Type, Torque Force Transducers

Other :

Model:K908A
Brand:HWAKAI
Load Direction:Torque
Capacity:0.1Nm~5Nm, 5Nm~500Nm
IP Class:IP66

Product Description

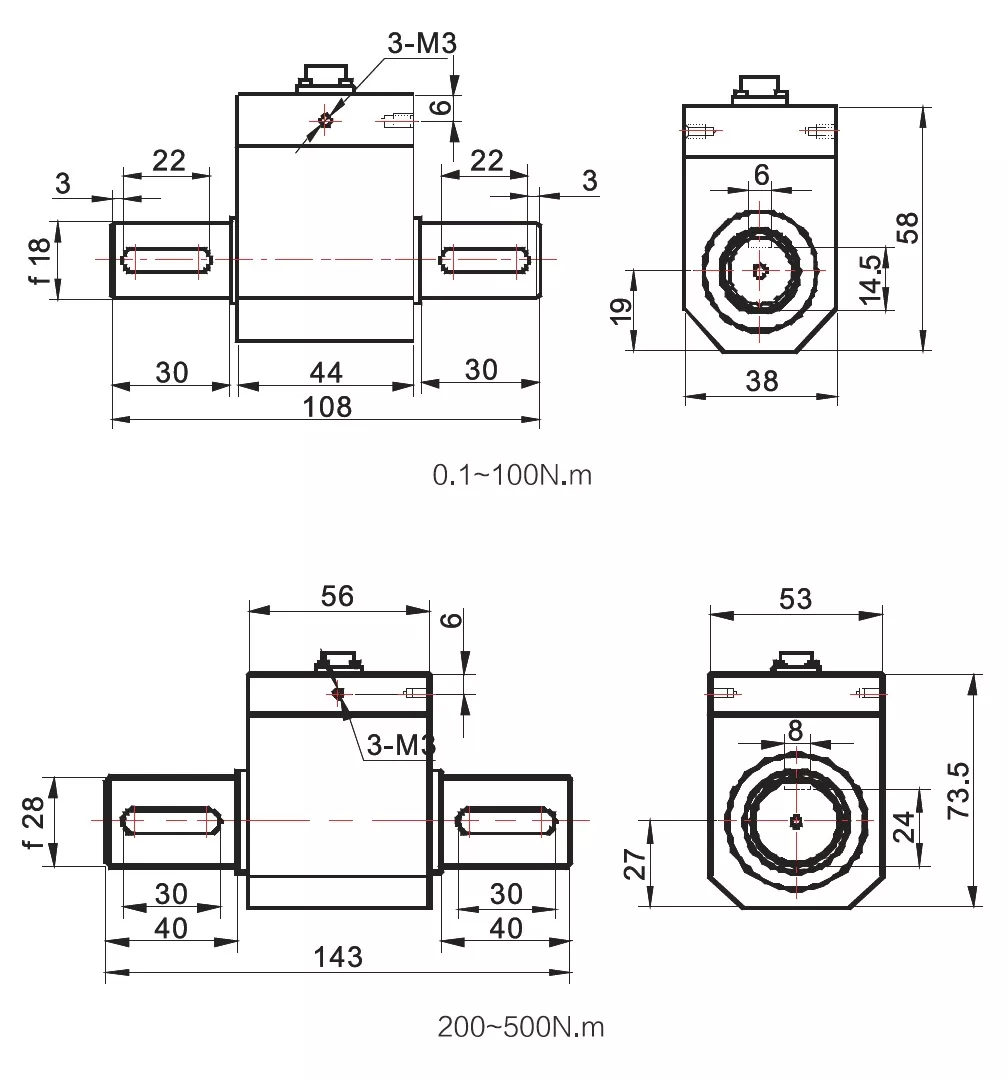

Dimension

Parameter

Specifications	Technique
Capacity	0.1,0.2,0.3,0.5,1,2,3,5,10,20 N.m 30,50,100,200,300,500 N.m
Sensitivity	1.0 ~ 1.5 mV / V
Zero Balance	± 1% F.S.
Non-linearity	0.2% F.S.
Hysteresis Error	0.2% F.S.
Repetition	0.1% F.S.
Creep (30 min)	0.1% F.S.
Temp. Effect on sensitivity (TKc)	0.02% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.02% F.S. / 10 ℃
Input Resistance	350/700 ± 10 Ω
Output Resistance	350/700 ± 10 Ω
Insulation Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	12 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-20 ~ 60 ℃
Limit load (E L)	120% F.S.
Breaking load (E d)	150% F.S.
Cable size	3000 mm
IP Class	IP66
