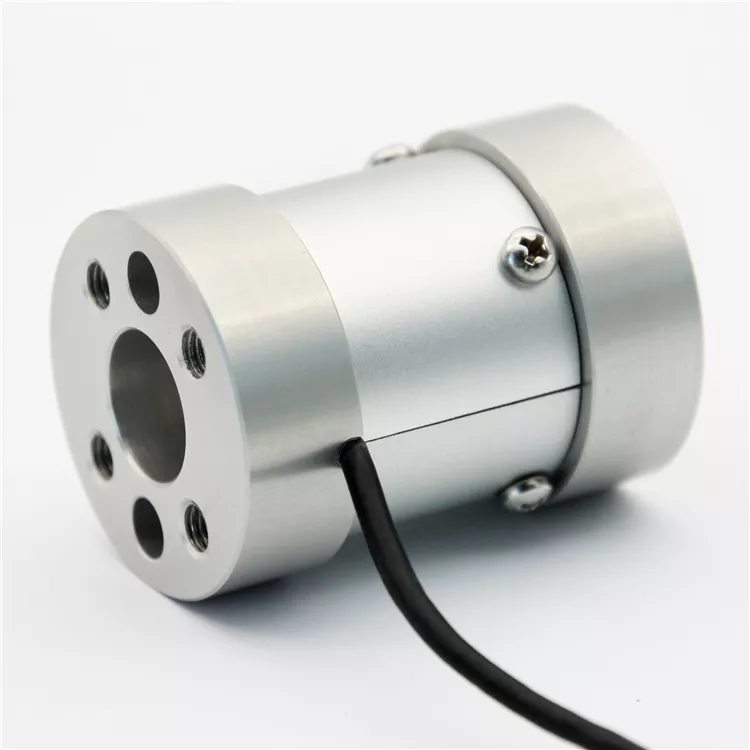

K903 Torque Force Transducer

It is suitable for static and discontinuous rotation torque measurement.

Categories Static Type, Torque Force Transducers

Static torque sensor;

Compact structure, easy to install;

Protection grade IP65;

Used for torque measurement of static and discontinuous rotation;

Capacity	0.2,0.5,1,2,5,6,10, 20,30,50,100,150 N.m
Sensitivity	1.5 ± 10 ％ mV / V
Zero Balance	± 2% F.S.
Non-linearity	0.1% F.S.
Hysteresis Error	0.1% F.S.
Repetition	0.05% F.S.
Creep (30 min)	0.1% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S./10℃
Temp. Effect on zero balance (TKo)	0.05% F.S./10℃
Input Resistance	410 ± 20 Ω
Output Resistance	350 ± 10 Ω
Insulation Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-20 ~ 80 ℃
Limit load (E L)	120% F.S.
Breaking load (E d)	150% F.S.
Cable Size	φ3 × 4000 mm
Material (Measuring element)	Aluminum alloy
Weight (G), approx.	0.2 kg
IP Class	IP65
