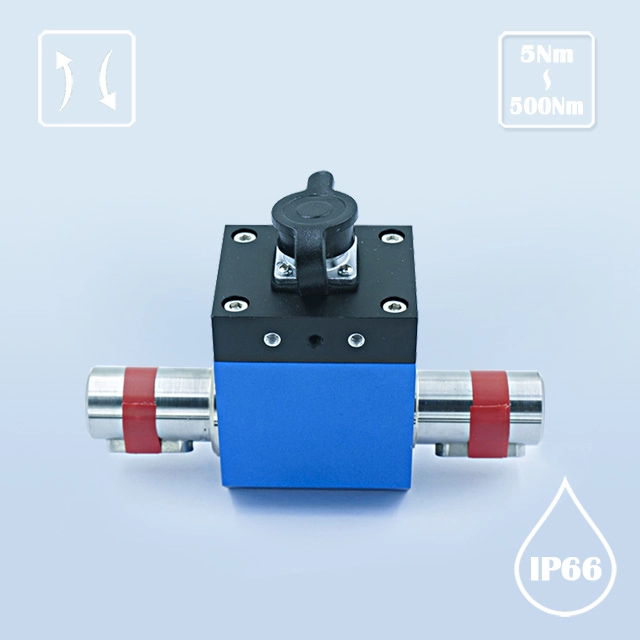

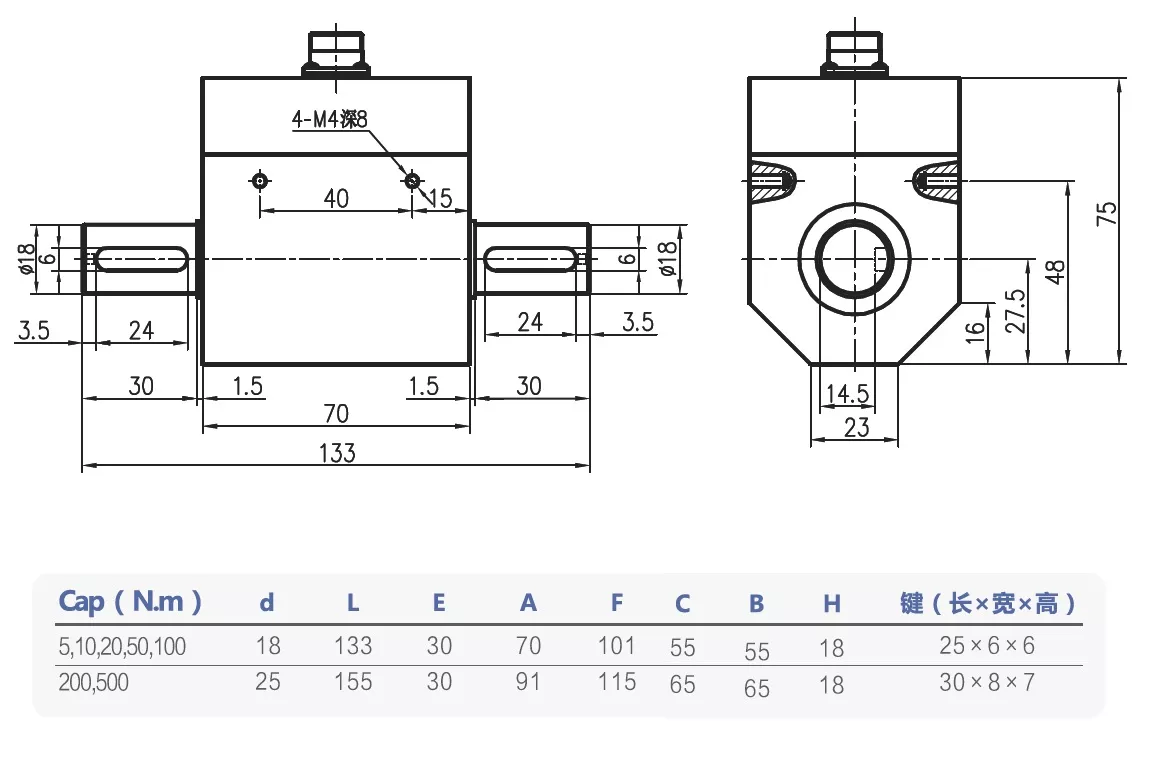

Installation size
Parameter
Specifications
Technique
Capacity
5,10,20,50,100,200,500 N.m
Sensitivity
1.0 ~ 1.5 mV / V
Zero Balance
± 1% F.S.
Non-linearity
0.2% F.S.
Hysteresis Error
0.2% F.S.
Repetition
0.1% F.S.
Creep (30 min)
0.1% F.S.
Temp. Effect on sensitivity (TKc)
0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)
0.05% F.S. / 10 ℃
Input Resistance
350/700 ± 10 Ω
Output Resistance
350/700 ± 10 Ω
Insulation Resistance
≥2000MΩ / 100VDC
Excitation Voltage
± 15V (output frequency signal)
Max. Excitation Voltage
24V (output analog signal)
Compensation Range
-10 ~ 60 ℃
Service Temperature Range
-20 ~ 60 ℃
Limit load (E L)
120% F.S.
Breaking load (E d)
150% F.S.
Cable size
3000 mm
IP Class
IP66
Features and Applications
Resistance strain is an integrated product composed of sensitive components and integrated circuits
High precision, stable and reliable performance
There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals
Key connection at both ends
Rotating speed is optional, no more than 8000 rpm
Load Direction
Wiring Code
Download
K908B
