K234 Miniature Tension & Compression bidirectional Sensor

Suitable for the fields of ultrasonic welding equipment, automobile press-fitting, automated assembly, 3C product testing, medical testing, and robotics.

Categories New product, Uncategorized

Material:

Features:

Model:K234
Brand:HWAKAI
Capacity:1KN ~20kN
IP Class:IP67

Product Description

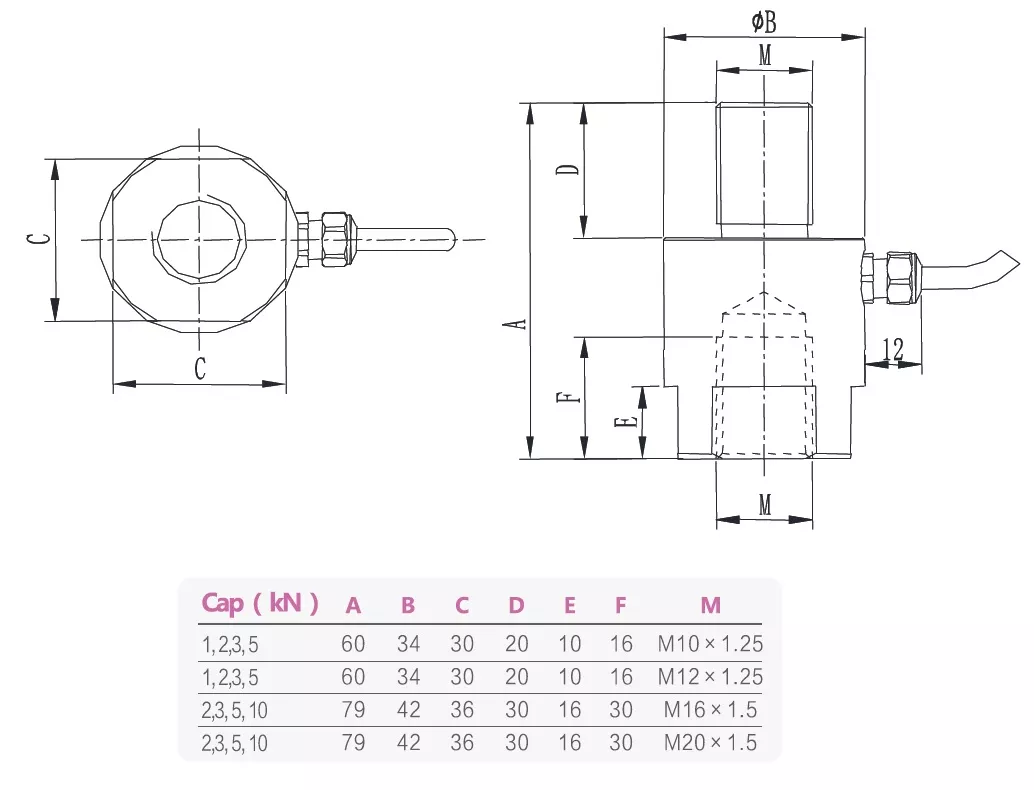

Dimensions

Parameters

Specifications	Technical index / Technique
Capacity	1,2,5,10 kN
Sensitivity	1.5 ± 10% mV / V
Zero Balance	± 0.03 mV / V
Non-linearity	0.1% F.S.
Hysteresis Error	0.1% F.S.
Repetition	0.05% F.S.
Creep (30 min)	0.05% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.05% F.S. / 10 ℃
Input Resistance	780 ± 20 Ω
Output Resistance	700 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-20 ~ 80 ℃
Limit load (EL)	150% F.S.
Breaking load (Ed)	200% F.S.
Cable Size	φ4 × 4000 mm
Weight (G), approx.	0.1 kg
Material (Measuring element)	Stainless steel
IP Class	IP67

Features & Applications

Low height and small deformation

Stainless steel / alloy steel material

Can be used for ultrasonic welding equipment

Automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing, measurement and control systems
