K912 Compression Load Cell

Widely used in rails, large-scale storage, large-scale punching machineWidely used in rails, large-scale storage, large-scale punching machines, steel structure workshops.s, steel structure workshops.

Categories New product, Uncategorized

Material:

Size :

Model:K912
Brand:HWAKAI
Load Direction:Compression
Capacity:5Nm~500Nm
IP Class:IP68

Product Description

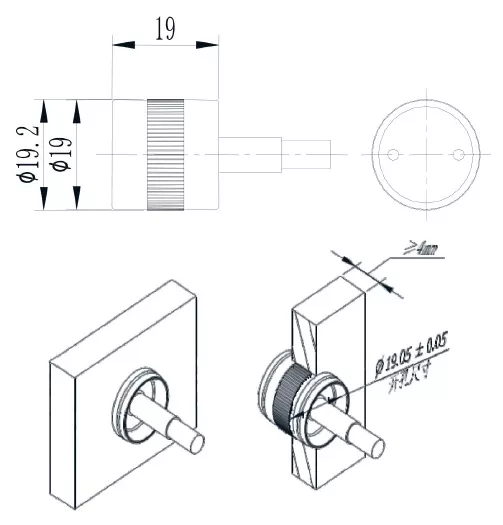

Dimensions

Parameter

Specifications	Technical index / Technique
Capacity	＞ 20 N / mm²
Zero Balance	± 0.25 F.S.
Non-linearity	0.1% F.S.
Temp. Effect on sensitivity (TKc)	0.03 ％ F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.03 ％ F.S. / 10 ℃
Input Resistance	700 ± 10 Ω
Output Resistance	700 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 60 ℃
Limit load (EL)	150% F.S.
Breaking load (Ed)	200% F.S.
Cable Size	φ4 × 2000 mm
Weight (G), approx.	0.1 kg
Material (Measuring element)	Stainless steel
IP Class	IP68
