K260 Clamping Force Load Cell

welding pressure measurement and clamping force test;
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,
mold assembly and other industrial testing and control system.

Categories New product, Uncategorized

Material:

Model:K260
Brand:HWAKAI
Capacity:1KN ~20kN
IP Class:IP67

Product Description

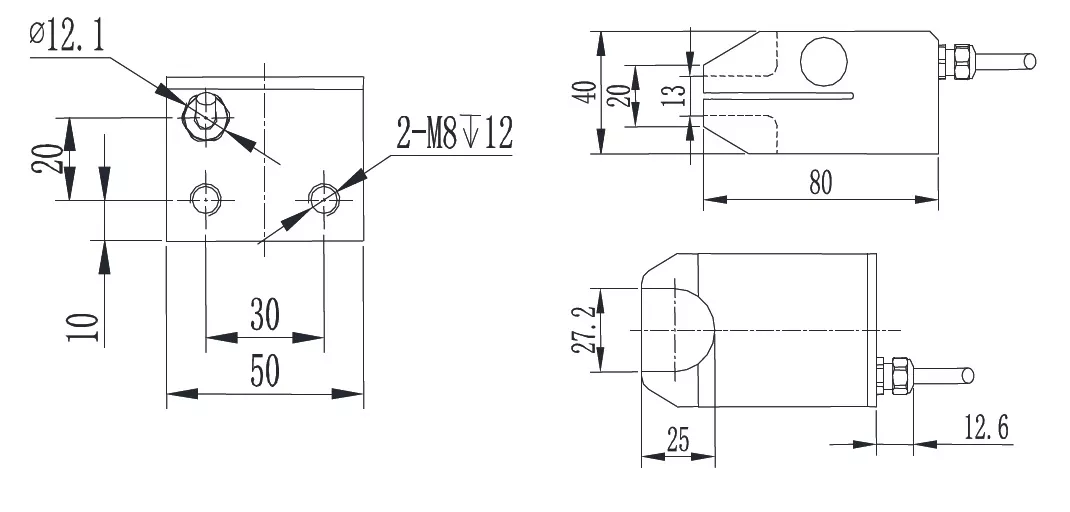

Dimensions

Parameter

Specifications	Technique
Capacity	5,10,15 kN
Sensitivity	1.5 ± 10 ％ mV / V
Zero Balance	± 0.03% mV / V
Non-linearity	0.1% F.S.
Hysteresis Error	0.1% F.S.
Repetition	0.05% F.S.
Creep (30 min)	0.05% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.05% F.S. / 10 ℃
Input Resistance	385 ± 20 Ω
Output Resistance	350 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-20 ~ 80 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	200% F.S.
Cable size	φ4 × 4000 mm
Weight (G), approx.	0.3 kg
Material (Measuring element)	Stainless steel / alloy steel
IP Class	IP67

Features & ApplicationsCompact

Design construction;Stainless steel or alloy steel;can be used for welding pressure measurement and clamping force test;Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system.
