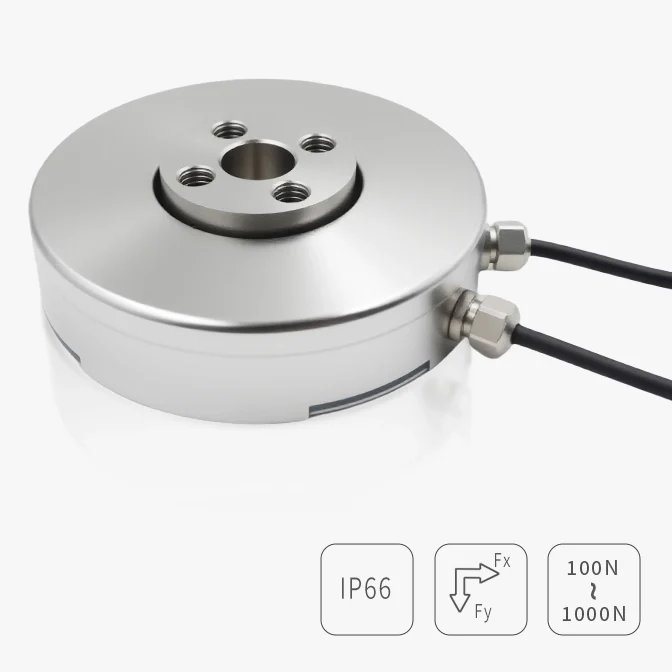

K245 2 Axis Force Load Cell

Automobile stall test,fluid mechanics test measurement;
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system.

Categories New product, Uncategorized

Material:

Features:

Model:K245
Brand:HWAKAI
Load Direction:Multi Axis
Capacity:100N~1000N
IP Class:IP66

Product Description

Dimensions

R245 installation drawings

Parameter

Specifications	Technique
Capacity (N)	X: 100/200/500/1000 Y:100/200/500/1000
Sensitivity	1.0 ~ 1.5 mV / V
Zero Balance	± 2% F.S.
Non-linearity	0.1% F.S.
Hysteresis Error	0.1% F.S.
Repetition	0.1% F.S.
Interference Error	0.3% F.S.
Creep (30 min)	0.1% F.S.
Temp. Effect on sensitivity (TKc)	0.1% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.1% F.S. / 10 ℃
Input Resistance	785 ± 20 Ω
Output Resistance	700 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 12 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 75 ℃
Limit load (EL)	150% F.S.
Breaking load (Ed)	200% F.S.
Cable Size	φ3 × 4000 mm
Material (Measuring element)	0.8 kg
IP Class	IP66

Features & Applications

High accuracy with strong ability of anti-side force;

Easy to install and defined Grade IP66;

Dimension could be customizable;

automobile stall test,fluid mechanics test measurement;

Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system.
