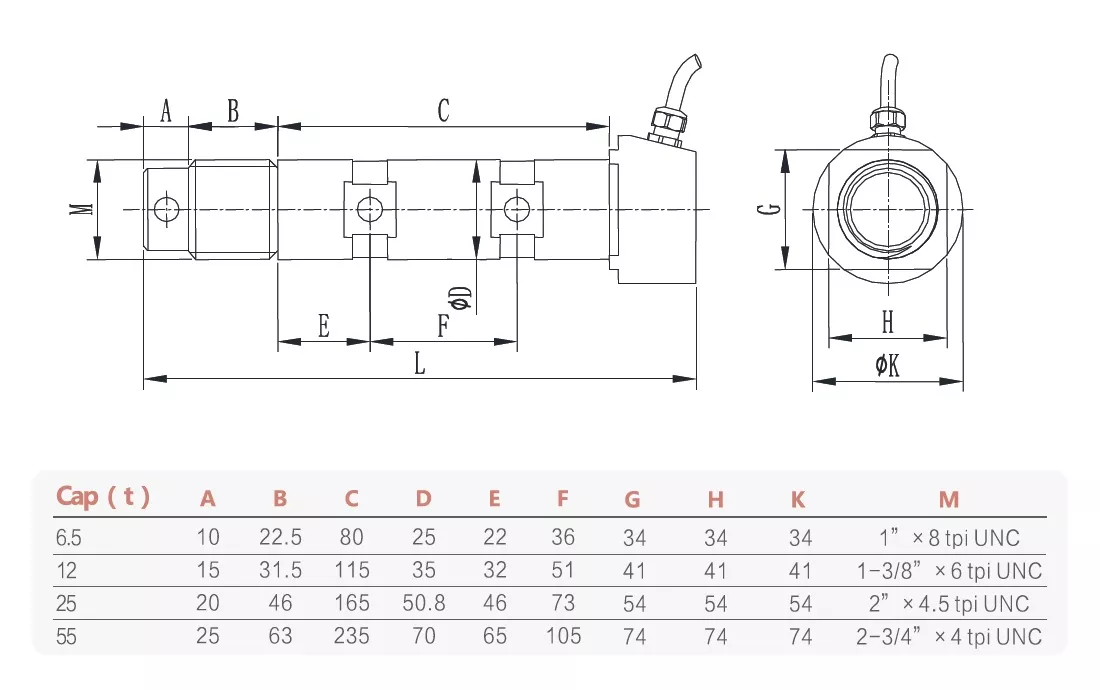

Dimensions
Parameter
|
Specifications
|
Technique
|
|
Capacity
|
6.5,12,25,55 T
|
|
Sensitivity
|
1.2 ~ 1.5 mV / V
|
|
Zero Balance
|
± 0.03% mV / V
|
|
Non-linearity
|
0.5% F.S.
|
|
Hysteresis Error
|
0.2% F.S.
|
|
Repetition
|
0.1% F.S.
|
|
Creep (30 min)
|
0.1% F.S.
|
|
Temp. Effect on sensitivity (TKc)
|
0.05% F.S. / 10 ℃
|
|
Temp. Effect on zero balance (TKo)
|
0.05% F.S. / 10 ℃
|
|
Input Resistance
|
750 ± 20Ω
|
|
Output Resistance
|
700 ± 10Ω
|
| Insulating Resistance |
≥5000MΩ / 100VDC
|
|
Excitation Voltage
|
5 ~ 15V
|
|
Max. Excitation Voltage
|
20V
|
|
Compensation Range
|
-10 ~ 60 ℃
|
|
Service Temperature Range
|
-20 ~ 80 ℃
|
|
Limit load (EL)
|
150% F.S.
|
|
Breaking load (Ed)
|
200% F.S.
|
|
Cable Size
|
φ4 × 4000 mm
|
|
Material (Measuring element)
|
0.3 kg
|
| Weight (G), approx. |
stainless steel
|
|
IP Class
|
IP67
|
Features & Applications

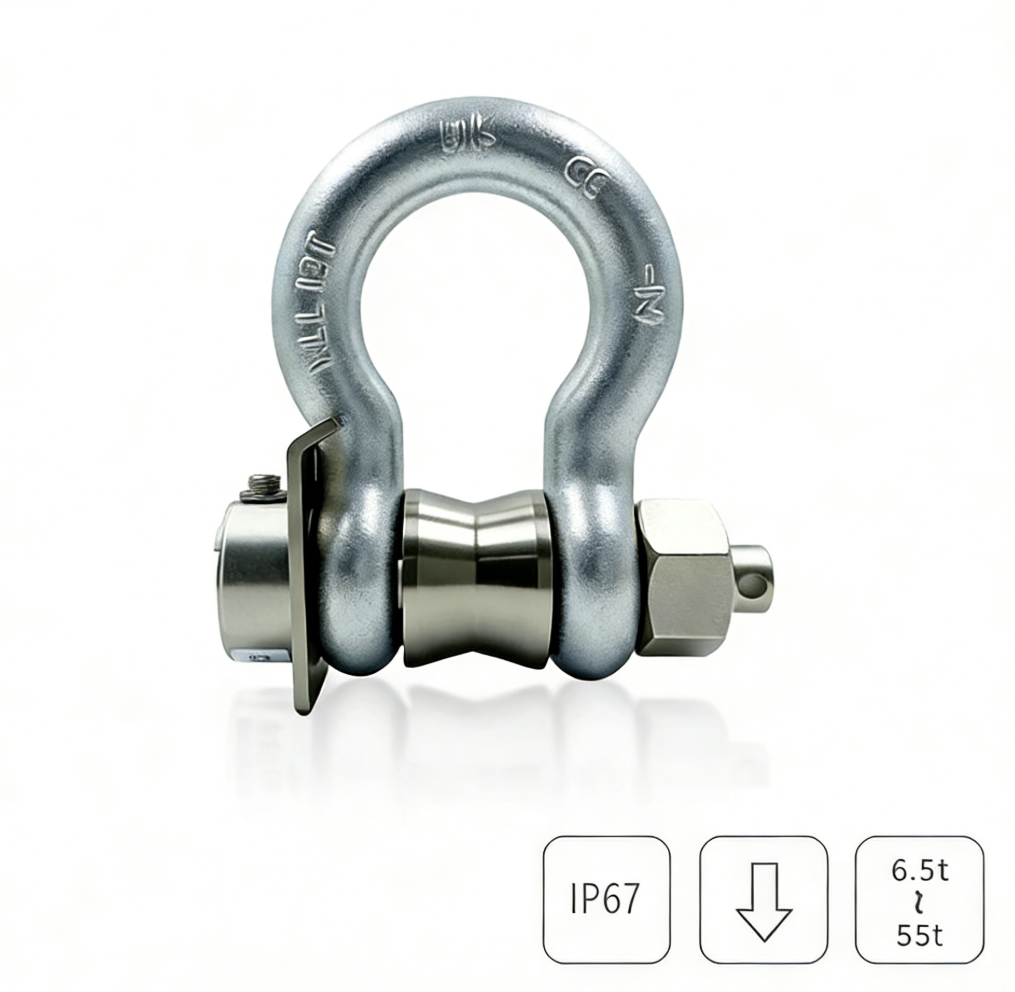

Pin sensor for shackle
Stainless steel / alloy steel
Small size, easy operation and installation
Load Direction
