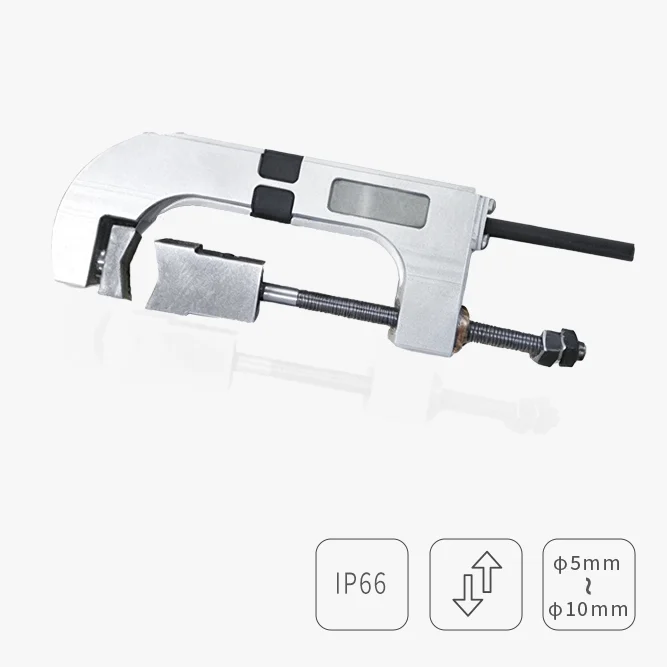

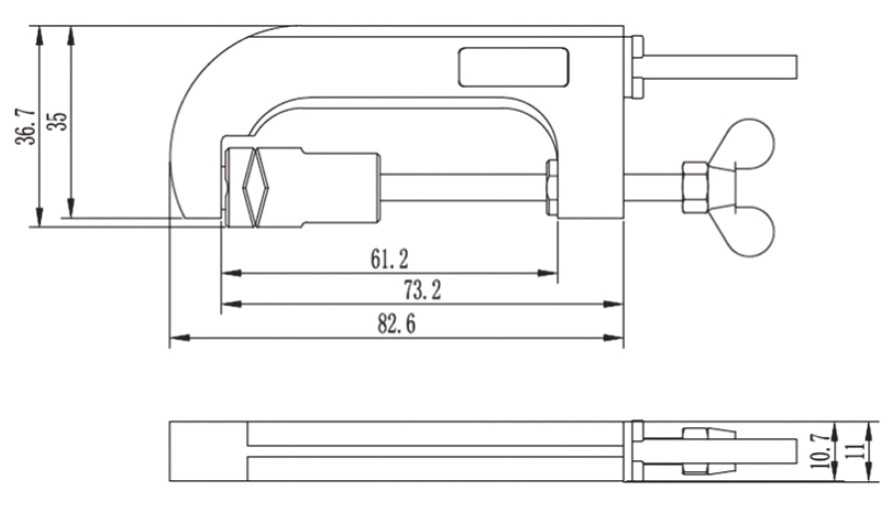

Dimensions
Parameter
|
Specifications
|
Technique
|
|
Capacity (N)
|
φ5mm ~ 28mm
|
|
Sensitivity
|
1.0 mV / V
|
|
Zero Balance
|
± 1% F.S.
|
|
Non-linearity
|
0.1% F.S.
|
|
Hysteresis Error
|
0.1% F.S.
|
|
Repetition
|
0.1% F.S.
|
|
Creep (30 min)
|
0.1% F.S.
|
|
Temp. Effect on sensitivity (TKc)
|
0.05% F.S. / 10 ℃
|
|
Temp. Effect on zero balance (TKo)
|
0.05% F.S. / 10 ℃
|
|
Input Resistance
|
350 ± 20 Ω
|
|
Output Resistance
|
350 ± 5 Ω
|
| Insulating Resistance |
≥5000 MΩ / 100VDC
|
|
Excitation Voltage
|
5 ~ 10 V
|
|
Max. Excitation Voltage
|
15 V
|
|
Compensation Range
|
-10 ~ 60 ℃
|
|
Service Temperature Range
|
-30 ~ 85 ℃
|
|
Limit load (EL)
|
150% F.S.
|
|
Breaking load (Ed)
|
200% F.S.
|
|
Cable Size
|
φ4 × 4000 mm
|
|
Material (Measuring element)
|
0.8 kg
|
|
IP Class
|
IP66
|
Features & Applications
Low profile and small deflection;
Mainly used for tension and compression force testing for raw material and other industrial testing
and control system as well as High dynamic response frequency.
Load Direction
Wiring Code
Download
K091
