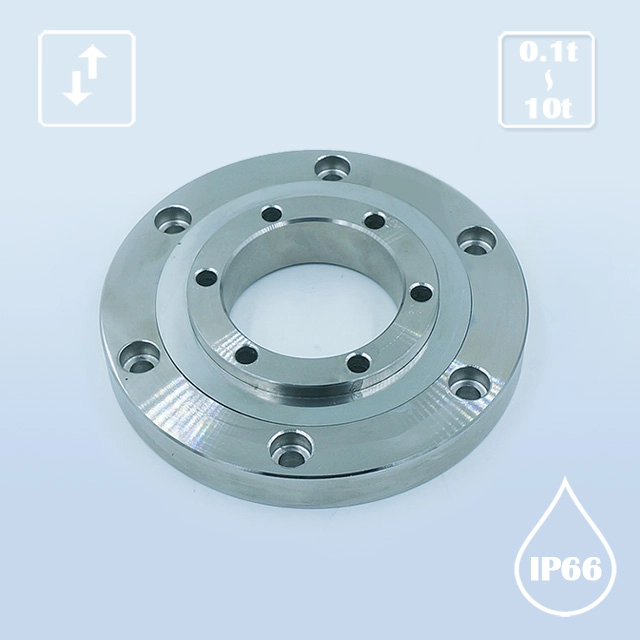

K118B Tension And Compression Bidirectional Load Cell

Widely used in medical testing, robotics, mold assembly and other industrial test, measurement and control systems;
It is also suitable for various industrial weighing systems such as testing machines, truck scales, hopper scales and so on.

Categories Compression & Tension Load Cells, Pancake / Spoke Type

Material:

Size :

Model:K118B
Brand:HWAKAI
Load Direction:Tension & Compression
Capacity:1KN ~20kN, 20kN ~
IP Class:IP66

Product Description

Dimension

Parameters

Specifications	Technique
Capacity	0.1,0.2,0.5,1,2,3,5,10 T
Sensitivity	1.5 ± 10 ％ mV / V
Zero Balance	± 2% F.S.
Non-linearity	0.2% F.S.
Hysteresis	0.2% F.S.
Repetition	0.1% F.S.
Creep (30 min)	0.03% F.S.
Temp. Effect on sensitivity (TKc)	0.02% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.02% F.S. / 10 ℃
Input Resistance	780 ± 10 Ω
Output Resistance	700 ± 5 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 12 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 70 ℃
Limit load (E L)	120% F.S.
Breaking load (E d)	150% F.S.
Cable Size	φ4 × 4000 mm
Material (Measuring element)	Stainless steel / alloy steel
IP Class	IP66

Features and Applications

Flange sensor;

Stainless steel / alloy steel material;

Tension and compression bidirectional, range can be customized;

Medical testing, robotics, mold assembly and other industrial test, measurement and control systems;

Also suitable for various industrial weighing systems such as testing machines, truck scales, hopper scales, etc .;
