K317 Column Tension And Compression Load Cell

It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.

  • K317
  • HWAKAI
  • Tension & Compression
  • 1N~100N, 100N~1000N, 1KN ~20kN
  • IP66

Product Description

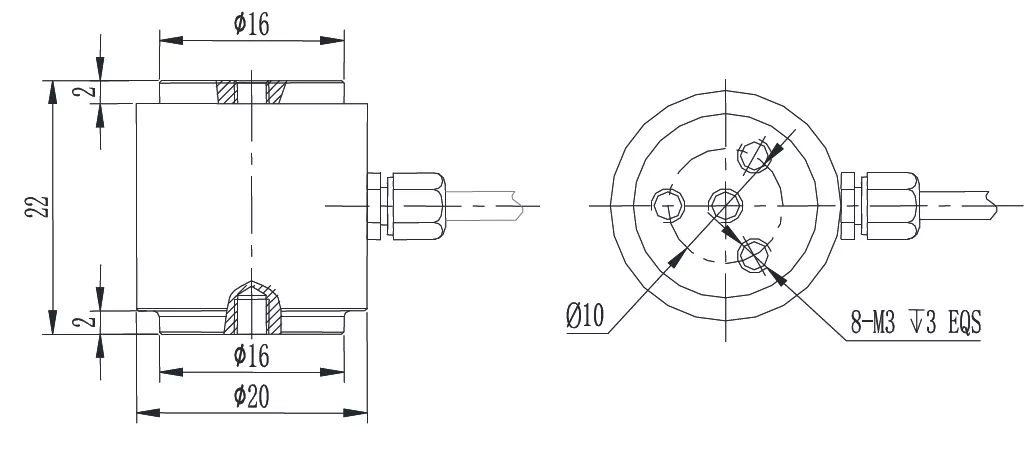

Dimension



Parameters



Specifications

Technique

Capacity

20,50,100,300,500,1000,2000 N

Sensitivity

2.0 ± 10 % mV / V

Zero Balance

± 2% F.S.

Non-linearity

0.05% F.S.

Hysteresis Error

0.05% F.S.

Repetition

0.05% F.S.

Creep (30 min)

0.05% F.S.

Temp. Effect on sensitivity (TKc)

0.05% F.S. / 10 ℃

Temp. Effect on zero balance (TKo)

0.05% F.S. / 10 ℃

Input Resistance

650/350 ± 10 Ω

Output Resistance

650/350 ± 10 Ω

Insulating Resistance

≥5000 MΩ / 100VDC

Excitation Voltage

5 ~ 12 V

Max. Excitation Voltage

15 V

Compensation Range

-10 ~ 60 ℃

Service Temperature Range

-20 ~ 80 ℃

Limit load (EL)

150% F.S.

Breaking load (Ed)

200% F.S.

Cable Size

φ3 × 4000 mm

Weight (G), approx.

0.1 kg

Material (Measuring element)

Stainless steel

IP Class

IP66



Features and Applications



Low height, small deformation, easy installation, flat loading;

stainless steel material;

Tension and compression

High dynamic response frequency;

Used in push and pull gauges, various industrial weighing systems, etc .;

Mainly used for automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robots,

Mold assembly and other industrial test, measurement and systems.

Load Direction





Wiring Code



Wiring regulations



Download

K317

Inquiry Sales Engineer
