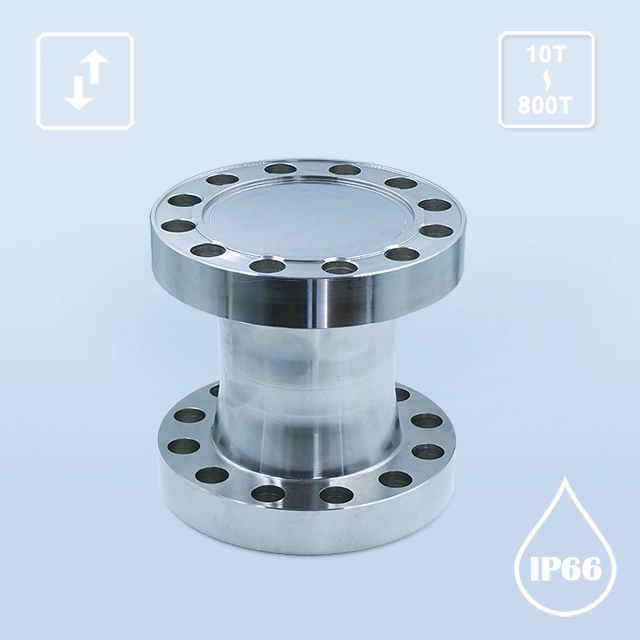

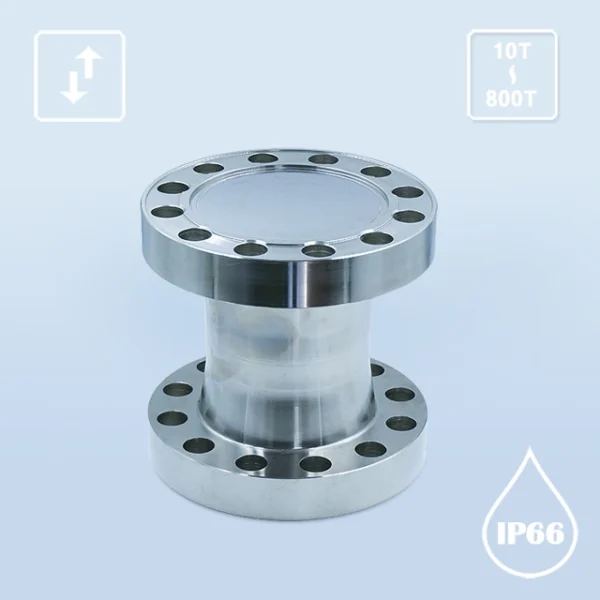

K327 Tension And Compression Bidirectional Force Sensor

It can be applied to testing machines, truck scales, hopper scales, various industrial weighing systems, etc.

Specifications	Technique
capacity	10,20,30,50,60,100, 200,300,400,500,600,800 T
Sensitivity	1.5 ± 1 ％ mV / V
Zero Balance	± 1% F.S.
Non-linearity	0.1% F.S.
Hysteresis Error	0.1% F.S.
Repetition	0.1% F.S.
Creep (30 min)	0.05% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.05% F.S. / 10 ℃
Input Resistance	780 ± 20 Ω
Output Resistance	700 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 70 ℃
Limit load (EL)	150% F.S.
Breaking load (Ed)	200% F.S.
Cable Size	φ5 × 6000 mm
Material (Measuring element)	Alloy steel / stainless steel
IP Class	IP66

Alloy steel / stainless steel material;

Tension and compression

Used in testing machines, truck scales, hopper scales, various industrial weighing systems, etc .;
