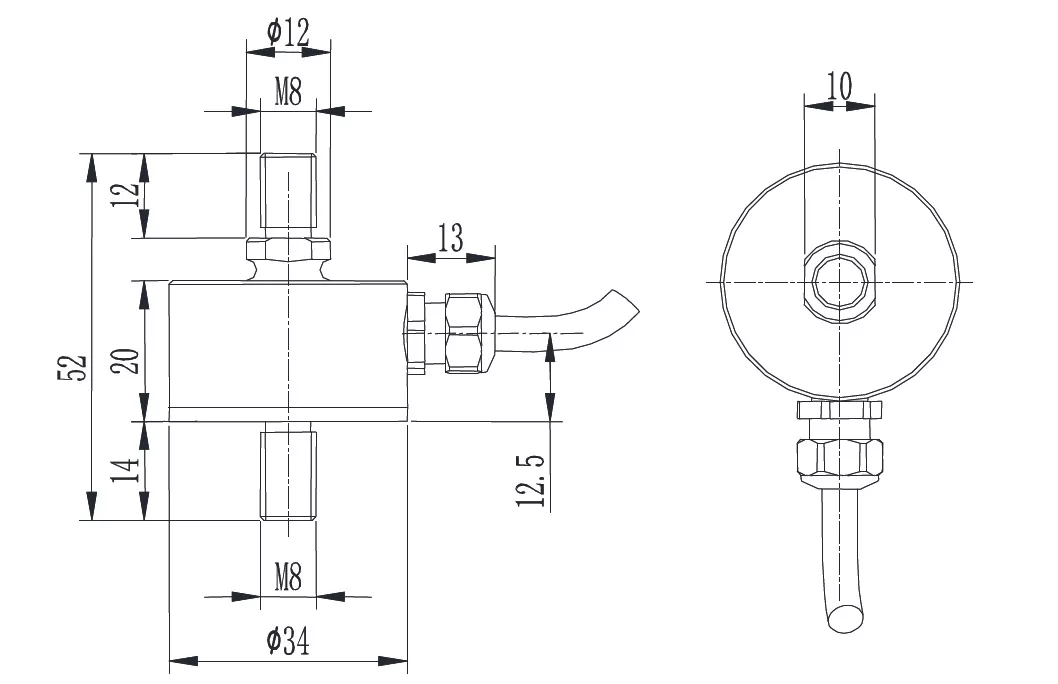

Dimension
Parameters
Specifications
Technique
Capacity
0.5,1,1.5,2,3,5 kN
Sensitivity
1.5 ± 10 ％ mV / V
Zero Balance
± 0.05 mV / V
Non-linearity
0.2% F.S.
Hysteresis Error
0.1% F.S.
Repetition
0.1% F.S.
Creep (30 min)
0.1% F.S.
Temp. Effect on sensitivity (TKc)
0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)
0.05% F.S. / 10 ℃
Input Resistance
700 ± 10 Ω
Output Resistance
700 ± 10 Ω
Insulating Resistance
≥5000 MΩ / 100VDC
Excitation Voltage
5 ~ 15 V
Max. Excitation Voltage
20 V
Compensation Range
-10 ~ 60 ℃
Service Temperature Range
-20 ~ 80 ℃
Limit load (EL)
150% F.S.
Breaking load (Ed)
200% F.S.
Cable Size
φ4 × 4000 mm
Weight (G), approx.
0.1 kg
Material (Measuring element)
Stainless steel
IP Class
IP68
Features and Applications
Miniature sensor, low height and small deformation;
stainless steel material;
Tension and compression
High dynamic response frequency;
Mainly used for automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robots,
Mold assembly and other industrial test, measurement and systems.
Load Direction
