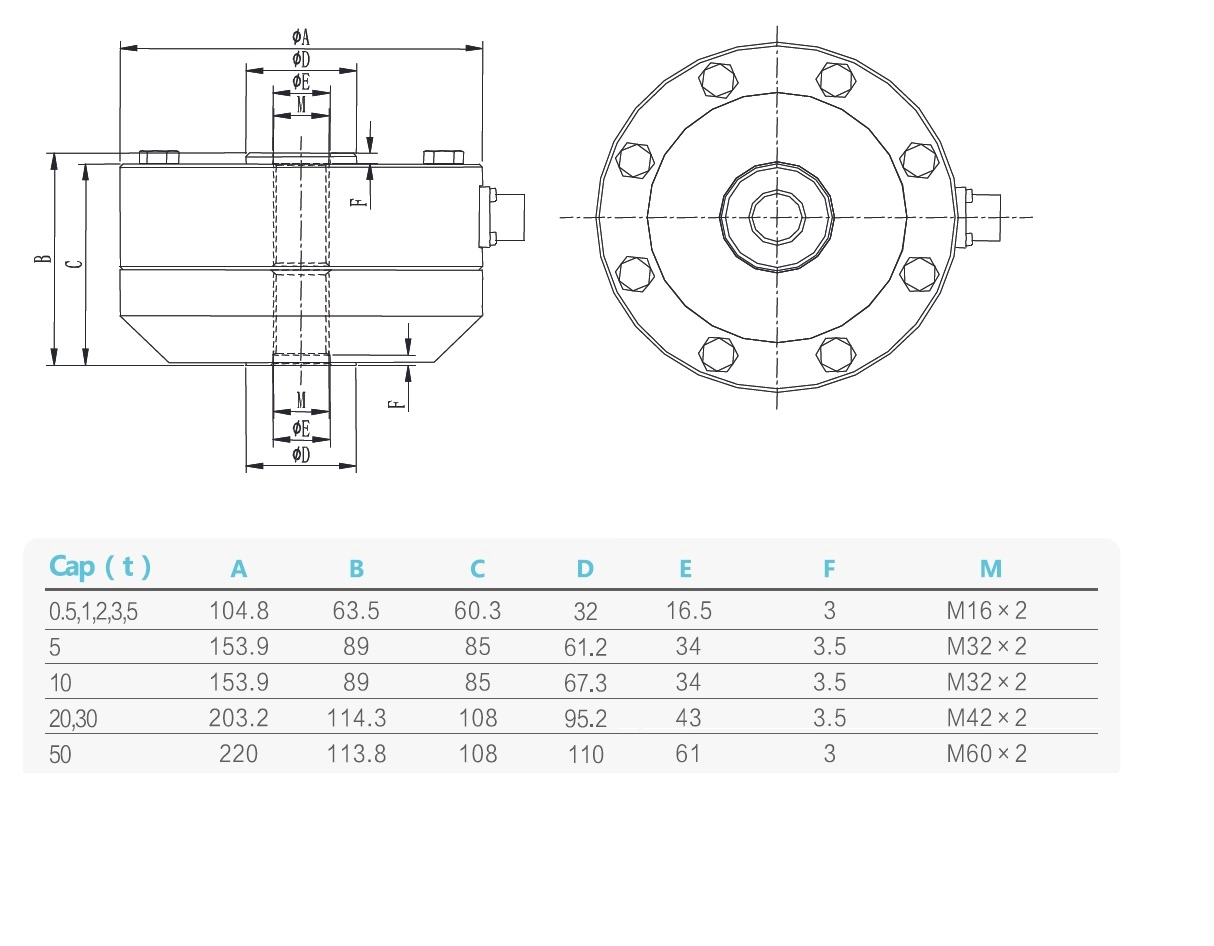

Dimension
Parameters
Specifications
Technique
Capacity
0.5,1,2,3,5,10,20,30,50 T
Sensitivity
2.0 ± 1 ％ mV / V
Zero Balance
± 1% F.S.
Non-linearity
0.03% F.S.
Hysteresis Error
0.03% F.S.
Repetition
0.02% F.S.
Creep (30 min)
0.03% F.S.
Temp. Effect on sensitivity (TKc)
0.002% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)
0.002% F.S. / 10 ℃
Input Resistance
780 ± 20 Ω
Output Resistance
700 ± 10 Ω
Insulating Resistance
≥5000 MΩ / 100VDC
Excitation Voltage
5 ~ 15 V
Max. Excitation Voltage
20 V
Compensation Range
-10 ~ 40 ℃
Service Temperature Range
-10 ~ 70 ℃
Limit load (EL)
150% F.S.
Breaking load (Ed)
300% F.S.
Cable Size
φ5 × 6000 mm
Material (Measuring element)
Stainless steel / alloy steel
IP Class
IP67

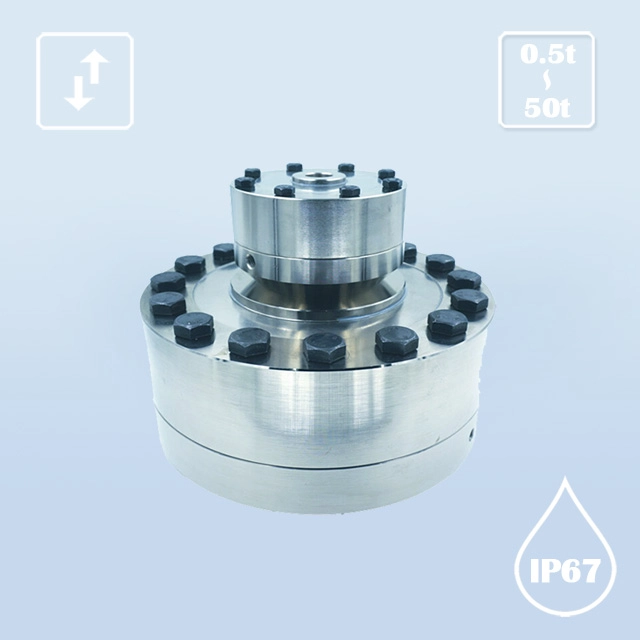

Features and Applications
Spoke sensor;
Alloy steel / stainless steel material;
Tension and compression
Used in testing machines, truck scales, hopper scales, various industrial weighing systems;
Other ranges can be customized;
It can be used as a standard source for measurement.
Load Direction
Wiring Code
