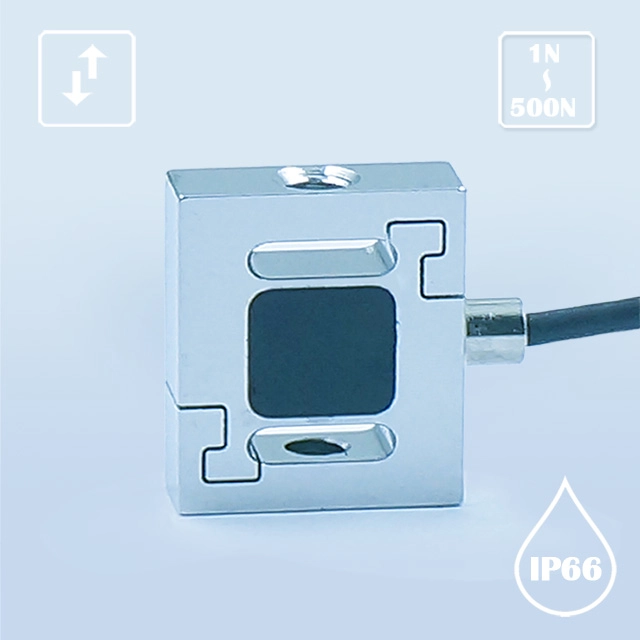

K313 Miniature Tension And Compression Bidirectional Load Cell

It is widely used in key force test and various key switch test of various 3C products such as computers;
Various insertion force tests, medical tests, and other industrial tests have high dynamic response frequencies.

Categories Compression & Tension Load Cells, S-Type

Material:

Size :

Model:K313
Brand:HWAKAI
Load Direction:Tension & Compression
Capacity:1N~100N, 100N~1000N
IP Class:IP66

Product Description

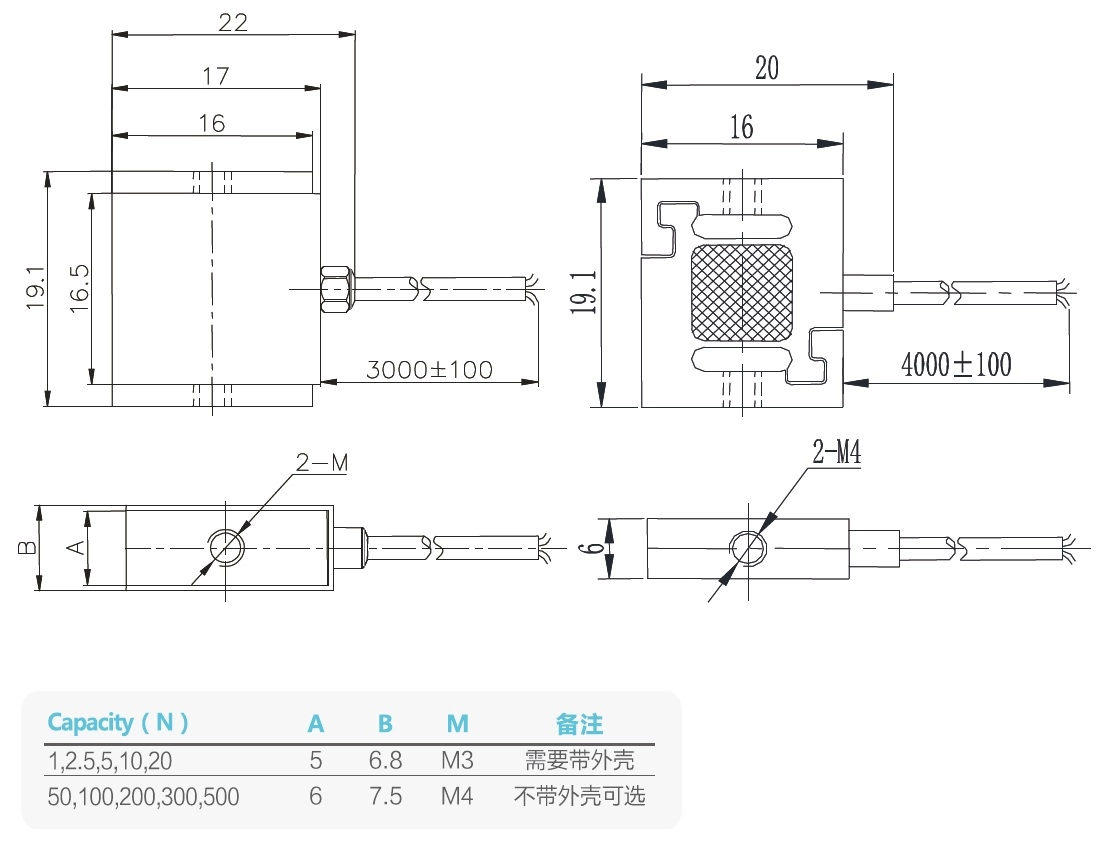

Dimension

Parameters

Specifications	Technique
Capacity	1,2.5,5,10,20,50,100,200, 300,500 N
Sensitivity	2.0 ± 10 ％ mV / V
Zero Balance	± 0.02 mV / V
Non-linearity	0.05% F.S.
Hysteresis Error	0.05% F.S.
Repetition	0.05% F.S.
Creep (30 min)	0.05% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.05% F.S. / 10 ℃
Input Resistance	350 ± 30 Ω
Output Resistance	350 ± 5 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-20 ~ 80 ℃
Limit load (EL)	150% F.S.
Breaking load (Ed)	300% F.S.
Cable Size	φ2 × 4000 mm
Weight (G), approx.	0.1 kg
Material (Measuring element)	stainless steel
IP Class	IP66

Features and Applications

Miniature sensor, high precision, with overload protection function;
stainless steel material;
Tension and compression
Mainly used for key force test of various 3C products such as computers, various key switch tests, various insertion force tests, medical tests, and other industrial tests
High dynamic response frequency.
