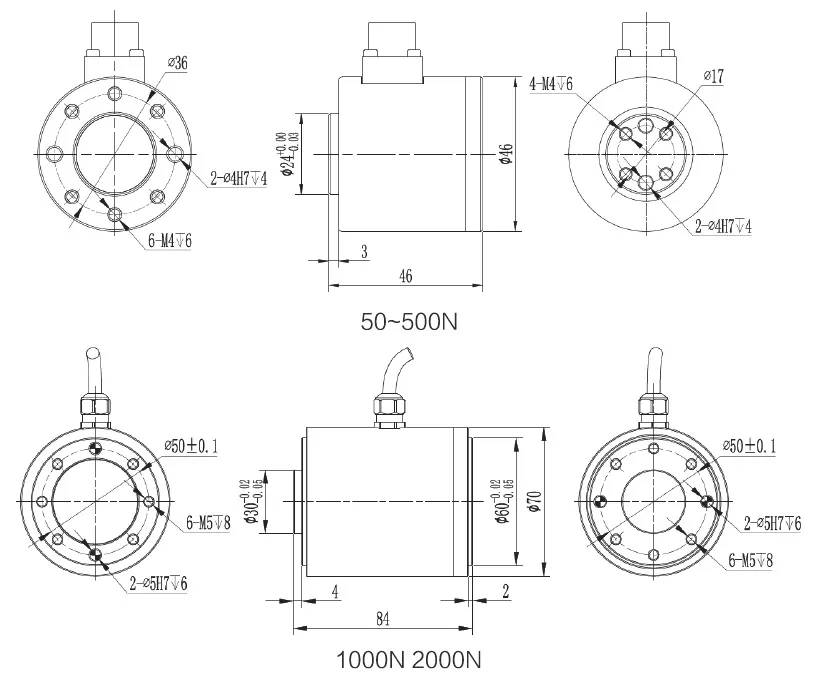

Dimension
Parameters
Specifications
Technical index / Technique
Capacity
X: 50/100/200/300/500/1000/2000
Y: 50/100/200/300/500/1000/2000
Z: 50/100/200/300/500/1000/2000/5000
Sensitivity
≈1.0 mV / V
Zero Balance
± 3% F.S.
Non-linearity
0.3% F.S.
Hysteresis Error
0.2% F.S.
Repetition
0.2% F.S.
Interference error
0.5% F.S.
Creep (30 min)
0.2% F.S.
Temp. Effect on sensitivity (TKc)
0.1 ％ F.S. / 10 ℃
Temp. Effect on zero balance (TKo)
0.1 ％ F.S. / 10 ℃
Input Resistance
350 ± 10 Ω
Output Resistance
350 ± 10 Ω
Insulating Resistance
≥5000MΩ / 100VDC
Excitation Voltage
5 ~ 12 V
Max. Excitation Voltage
15 V
Compensation Range
-10 ~ 40 ℃
Service Temperature Range
-20 ~ 75 ℃
Limit load (E L)
150% F.S.
Breaking load (E d)
300% F.S.
Cable Size
φ5×4000 mm
IP class
IP66
Features and Applications
High precision and strong ability to resist partial load;
Easy to install;
Customizable specifications;
Robot arm precision control, curved surface grinding and polishing, machining center precision carving processing, medical equipment precision testing
Load Direction
Wiring Code
