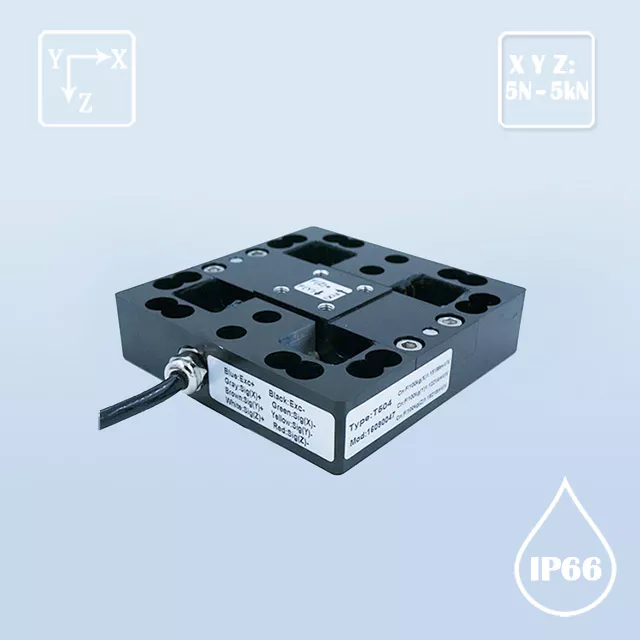

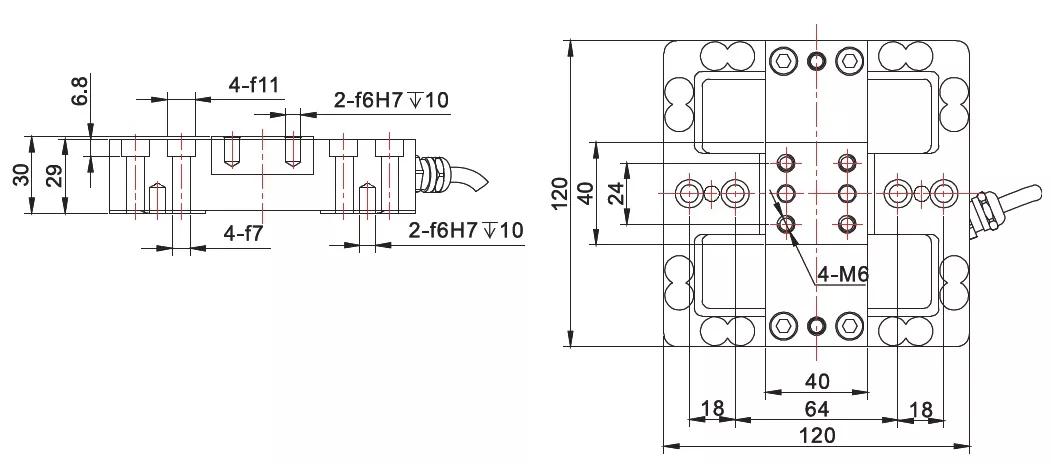

Dimensions
Parameters
Specifications
Technique
Capacity
X: 50/100/200/500/1000/2000/5000
Y: 50/100/200/500/1000/2000/5000
Z: 50/100/200/500/1000/2000/5000
Sensitivity
≈1.0 mV / V
Zero Balance
± 2% F.S.
Non-linearity
0.1% F.S.
Hysteresis Error
0.1% F.S.
Repetition
0.1% F.S.
Interference error
0.3% F.S.
Creep (30 min)
0.1% F.S.
Temp. Effect on sensitivity (TKc)
0.1 ％ F.S. / 10 ℃
Temp. Effect on zero balance (TKo)
0.1 ％ F.S. / 10 ℃
Input Resistance
785 ± 10 Ω
Output Resistance
700 ± 10 Ω
Insulating Resistance
≥5000MΩ / 100VDC
Excitation Voltage
5 ~ 12V
Max. Excitation Voltage
15V
Compensation Range
-10 ~ 40 ℃
Service Temperature Range
-20 ~ 75 ℃
Limit load (E L)
150% F.S.
Breaking load (E d)
300% F.S.
Cable Size
φ5×4000 mm
Weight (G), approx.
0.8 Kg
IP Class
IP66
Features and Applications High precision and strong anti-eccentricity
Easy to install, IP66
Accept custom specifications
Robot arm precision testing, curved surface polishing, machining center precision carving processing, medical equipment precision testing
Load Direction
Wiring Code
