K550 Compression And Torque Sensor

Compression-torsion composite force sensor;The mutual interference error of the two signals is small;
Low height and easy to install;Accept customized specifications;
Used in automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing,Robotics, mold assembly and other industrial test, measurement and control systems.

Category Multi Axis Force Load Cells

Model:K550
Brand:HWAKAI
Load Direction:Multi Axis
Capacity:1N~100N, 100N~1000N, 1KN ~20kN, 0.1Nm~5Nm, 5Nm~500Nm
IP Class:IP66

Product Description

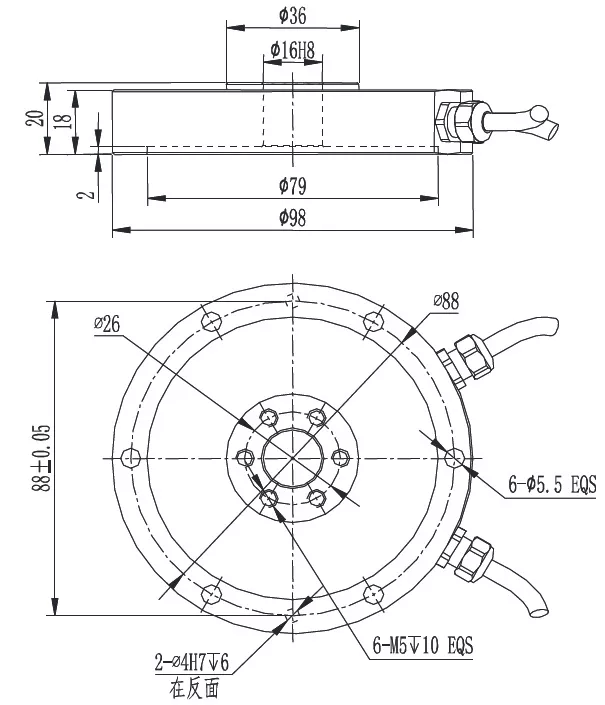

Dimensions

Parameters

Specifications	Technical index / Technique
Capacity	F: 20/30/50/100/200/500/1000/2000 N M: 1/2/3/5/10/20/30 / 50 N.m
Sensitivity	1.0 ± 10 ％ mV / V
Zero Balance	± 2% F.S.
Non-linearity	0.1% F.S.
Hysteresis Error	0.1% F.S.
Repetition	0.1% F.S.
Interference error	0.2% F.S.
Creep (30 min)	0.05% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.05% F.S. / 10 ℃
Input Resistance	350 ± 10 Ω
Output Resistance	350 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 15 V
Max. Excitation Voltage	20 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 75 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	200% F.S.
Cable Size	Φ4 × 4000 mm
Weight (G), approx.	0.6 Kg
IP Class	IP66
